Polymer Modified Bitumen Mixer

General Information

Modified Bitumen is used to prevent deteriorations like permanent deformation (wheel track), thermal cracking and segregation of binder from aggregate which might occur at pavement constructions.


More Information

About Product

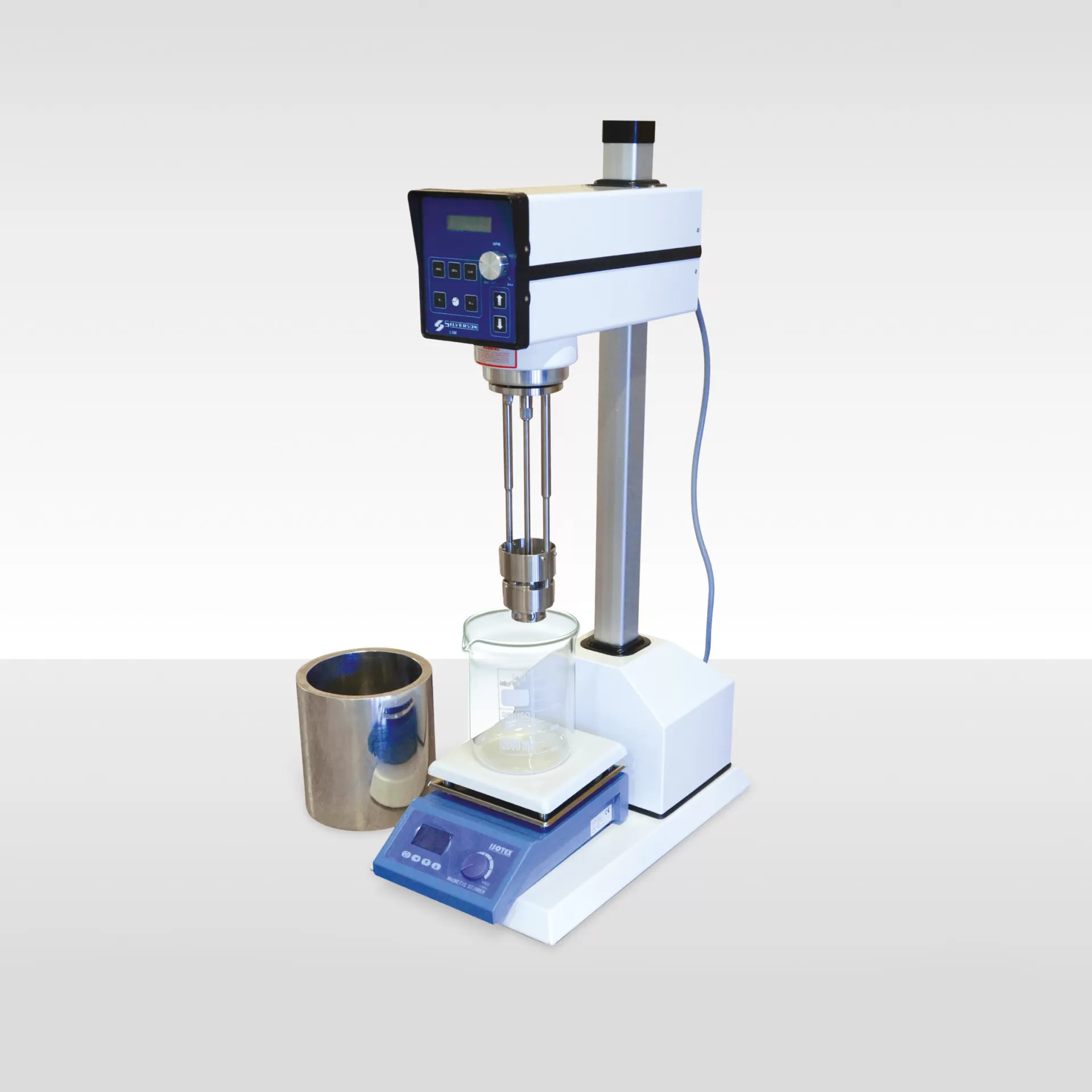

Polymer Modified Bitumen Mixer

Modified Bitumen is used to prevent deteriorations like permanent deformation (wheel track), thermal cracking and segregation of binder from aggregate which might occur at pavement constructions.

Polymer Modified Bitumen Mixer is used to mix different type of polymer dopes with bitumen homogeneously at proper temperature.

Mixer provides perfect mixtures by means of its special disintegrator head which operates at 6000-8000 r.p.m. Heat loss is kept at minimum level by a thermal isolation vessel.



UTB-1440 is supplied complete with;

  • UTGG-1345 2000 ml Borosilicate Glass Beaker
  • UTB-1441 Thermal Isolation Vessel for Glass Beaker
  • UTD-1410 Digital Hot Plate with Magnetic Stirrer

Products

Products

Product Code Description Number Process
UTB-1440 Polymer Modified Bitumen Mixer

Technical Specifications

Technical Specifications

Speed

6000 – 8000 r.p.m

Dimensions

350x560x950 mm

Weight (approx.)

25 kg

Power

220V, 50 Hz, 1ph

Programmable integrated timer

Digital tachometer

Digital heater with a capacity of 300 °C


Standards

Standards

EN 12697-35

Video

Video

Accessories

Accessories

Product Code Description Number Process
UTB-1441 Heat Insulated Metal Vessel, for 2000 mL Glass Beaker

Documents

Documents

UTB-1440
