Universal Coring Machines

General Information

The UTGD-0290 (2500 W) and UTGD-0310 (2200 W) Universal Coring Machines are powerful diamond drilling units serve for shock free wet drilling into concrete, natural stone and asphalt with coring diameter max. 200 mm for UTGD-0290 and coring diameter ranges 25-202 mm for UTGD-0310 respectively. Both models are optimal complements to handheld diamond drilling machines.

More Information

ASK AN EXPERT

About Product
Products
Technical Specifications
Standards
Video
Documents

About Product

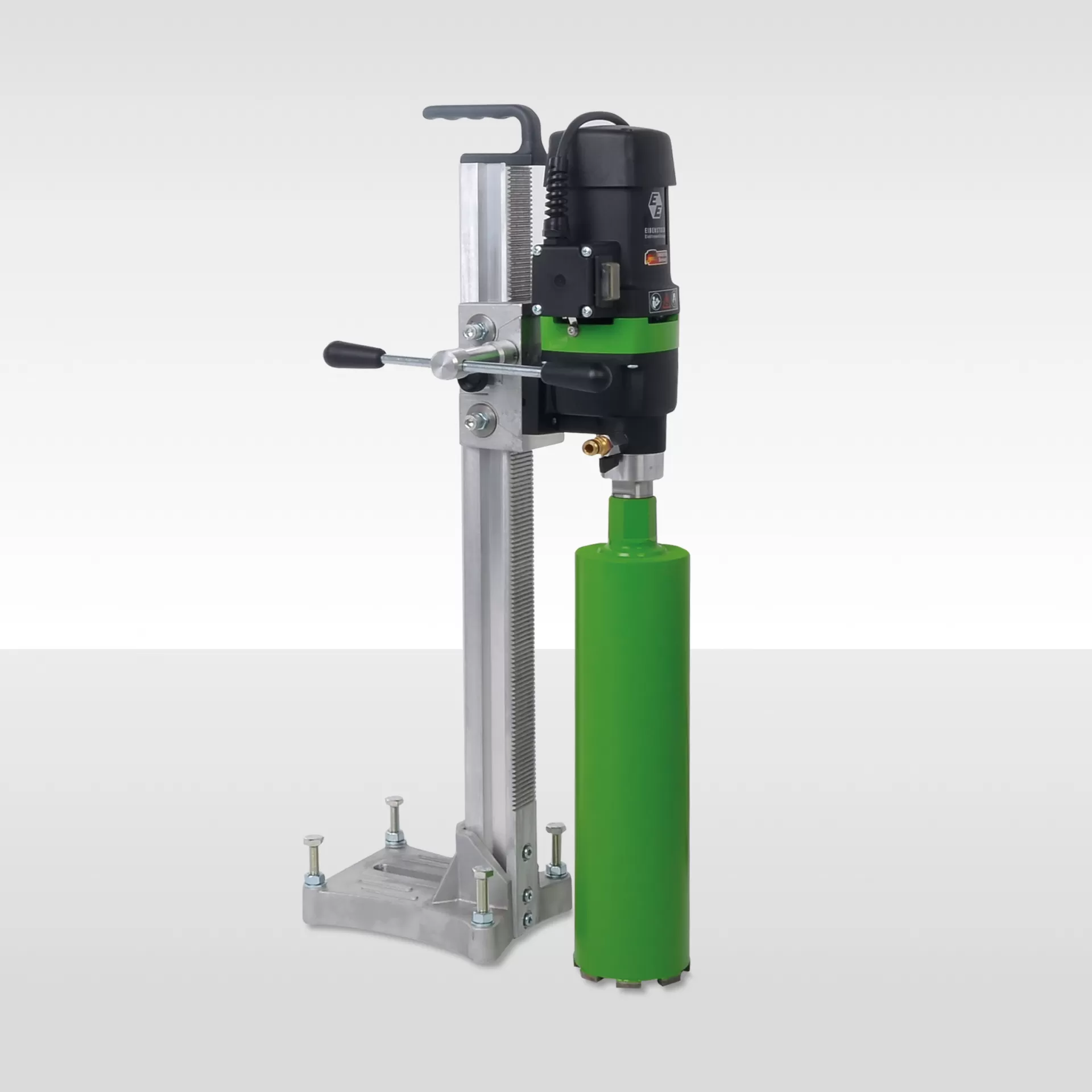

Universal Coring Machines

Coring bit should be ordered separately.

The Universal Coring Machine consists of

Drilling Motor
Drill Stand with Motor Cradle
Mounting Apparatus (between drilling motor and the cradle)

Products

Product Code	Description	Number	Process
UTGD-0290	Universal Coring Machine, Coring Range 200 mm, 220-240 V 50-60 Hz
UTGD-0310	Universal Coring Machine, Coring Range 25-202 mm, 220-240 V 50-60 Hz
UTGD-0320	Coring Bit for Concrete Sampling 50 mm dia. 400 mm Length
UTGD-0320-H	Coring Bit for Concrete Sampling 50 mm dia. 220 mm Length
UTGD-0322	Coring Bit for Concrete Sampling 75 mm dia. 400 mm Length
UTGD-0322-H	Coring Bit for Concrete Sampling 75 mm dia. 320 mm Length
UTGD-0324	Coring Bit for Concrete Sampling 98mm dia. 400 mm Length
UTGD-0324-H	oring Bit for Concrete Sampling 98mm dia. 320 mm Length
UTGD-0326	Coring Bit for Concrete Sampling 150 mm dia. 400 mm Length
UTGD-0326-H	Coring Bit for Concrete Sampling 150 mm dia. 320 mm Length
UTGD-0328	Coring Bit for Concrete Sampling 200 mm dia. 400 mm Length
UTGD-0330	Coring Bit for Asphalt Sampling 50 mm dia. 400 mm Length
UTGD-0330-H	Coring Bit for Asphalt Sampling 50 mm dia. 320 mm Length
UTGD-0332	Coring Bit for Asphalt Sampling 75 mm dia. 400 mm Length
UTGD-0332-H	Coring Bit for Asphalt Sampling 75 mm dia. 320 mm Length
UTGD-0334	Coring Bit for Asphalt Sampling 100 mm dia. 400 mm Length
UTGD-0334-H	Coring Bit for Asphalt Sampling 100 mm dia. 320 mm Length
UTGD-0336	Coring Bit for Asphalt Sampling 150 mm dia. 400 mm Length
UTGD-0336-H	Coring Bit for Asphalt Sampling 150 mm dia. 320 mm Length

Technical Specifications

SPECIFICATIONS	UTGD - 0290	UTGD - 0310
Power	2500 W	2200 W
Class of Protection	I	I
Drilling Diameter	max. 200 mm	25-202 mm
Speed (No-Load)	675 r.p.m.	460/760/1690 r.p.m.
Dimension	500x300x1150 mm	500x300x1150 mm
Weight (approx.)	15,5 kg	16 kg
