Muffle Furnace

General Information

UTD-1462 Muffle Furnace is used for determining the loss on ignition and insoluble residue of cement and building lime.


More Information
ASK AN EXPERT
  • Products
  • Technical Specifications
  • Standards
  • Video
  • Documents

About Product

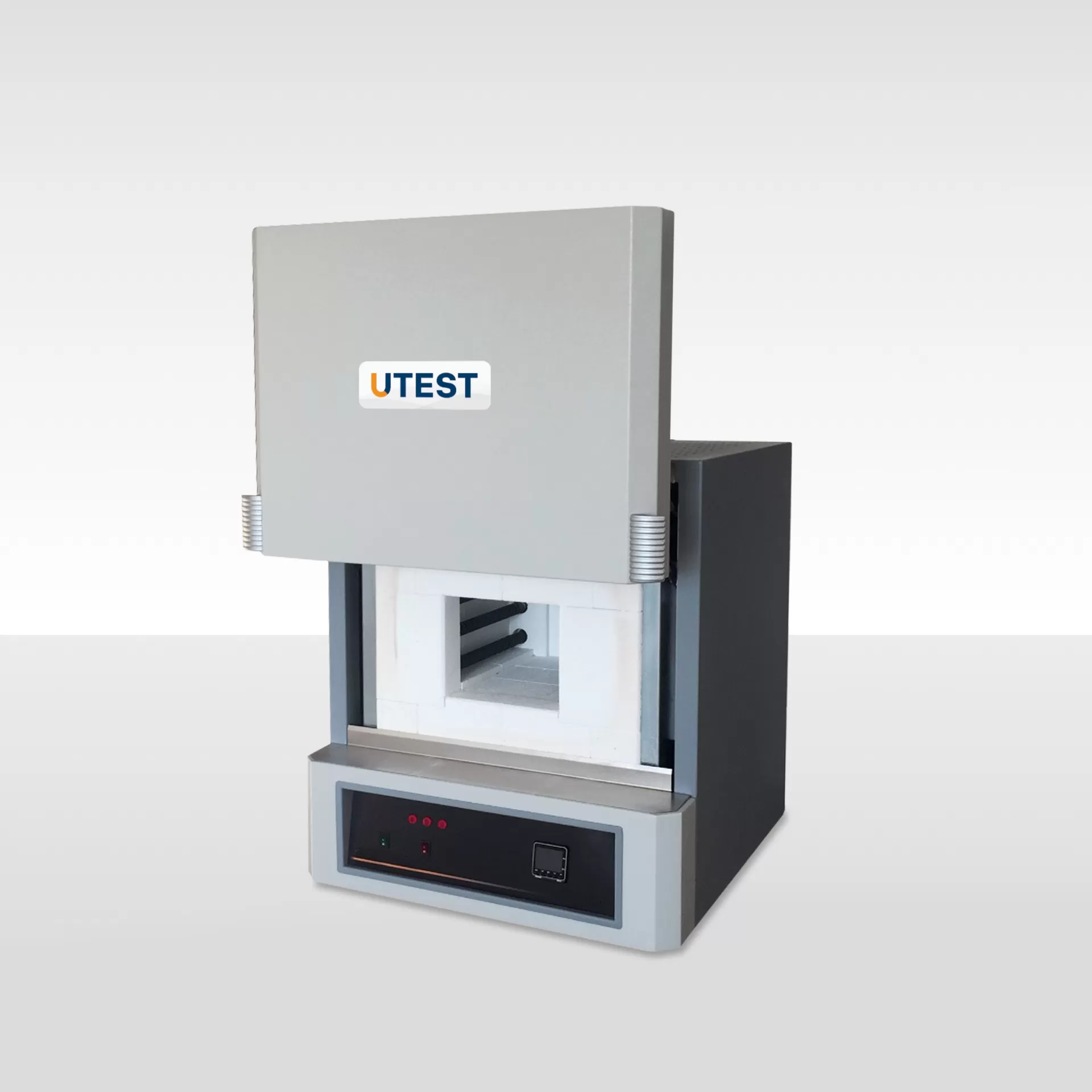

Muffle Furnace

UTD-1462 Muffle Furnace is used for determining the loss on ignition and insoluble residue of cement and building lime.

Working temprature and time can be programmed with PID digital control system.

Products

Products

Product Code Description Number Process
UTD-1462 Muffle Furnace 6 lt. 1200°C Max. Temperature with Programmable Timer, 20-240 V 50-60 Hz

Technical Specifications

Technical Specifications

Temperature Controller

PC 442/2

Max. Temperature

1200 °C

Max. Continuous Temperature

1150 °C

Temperature Deviation at Set Point

± 2°C

Heat Up Time to Max. Temperature

50. min

Internal Volume

6 L

Phase

1



Internal Dimension

140x180x200 mm

External Dimension

650x550x580 mm

Weight (approx.)

56 kg

Power

2000 W

Standards

Standards

EN 196-2; ASTM C25, C115

Video

Video

Accessories

Accessories

Product Code Description Number Process

Documents

Documents

UTD-1462
