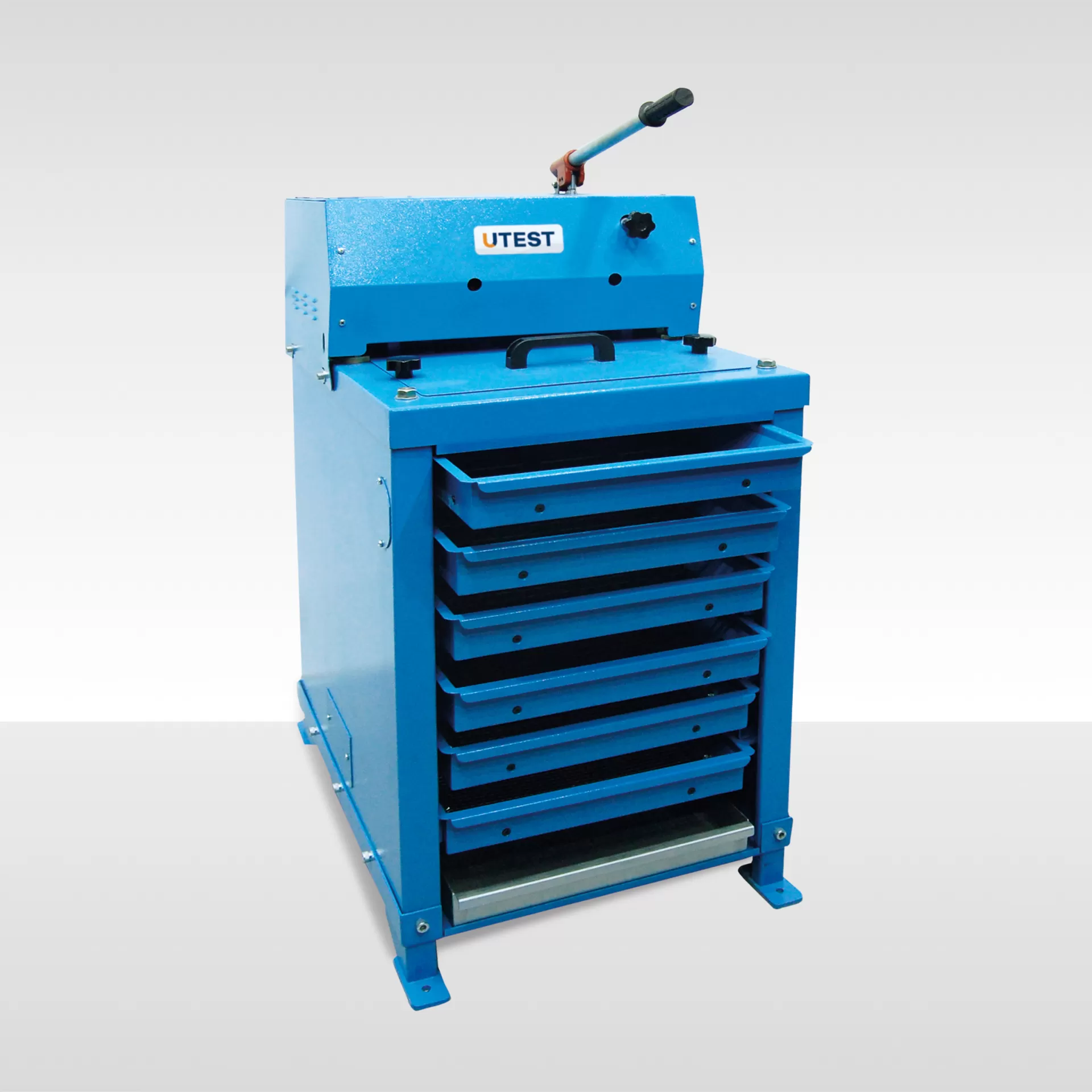

High Capacity Screen Shakers
The UTG-0420 and UTG-0422 are ideal for sizing large quantities of crushed stones, sand, gravel, slag, coal, coke, ores, pellets and similar materials. The screen shaker has a capacity of approx. 30 liters sample. The shaker has 6 screen trays and 1 pan capacity.
UTG-0420model is time-controlled, UTG-0422 model is frequency and time-controlled.

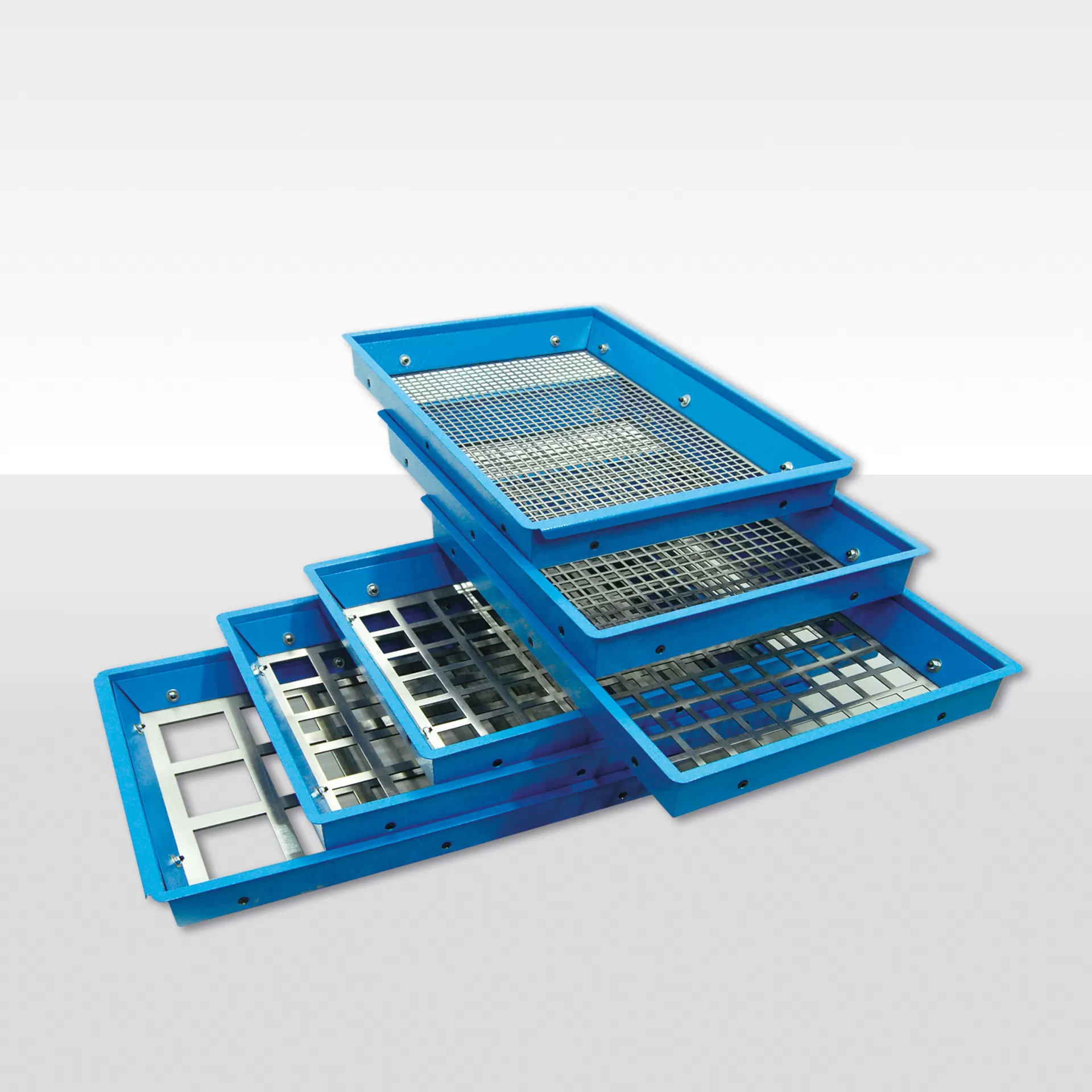

Matal trays have 630x420 mm sreening area and 667x452x67 mm sized. Screen trays with various aperture sized from 125 mm to 4 mm. Stainless steel wire cloth screen trays or perforated metal plate (steel) screen trays with round or square aperture are available on request.

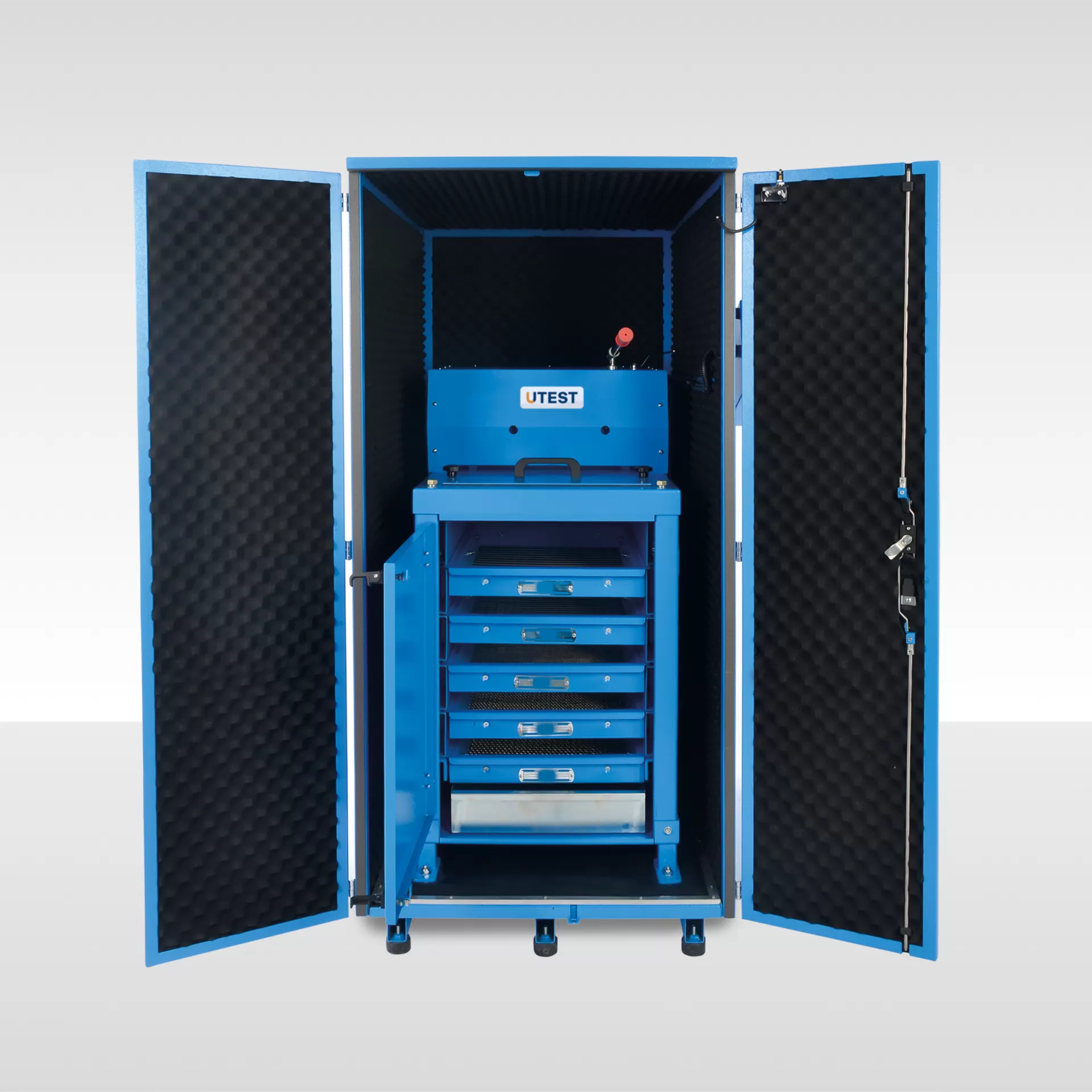

UTG-0426 Soundproof Safety Cabinet is manufactured from sheet steel lined internally with soundproofing material to reduce noise and for protection from dust.
Screen trays and Soundproof Safety Cabinet (UTG-0426) should be ordered separately.
The UTG-0420 or UTG-0422 is supplied complete with;
Teknik Özellikler
|
Screen Trays
|
|
Square
Nominal
Aperture
|
ISO 3310-1
|
ISO 3310-2
|
|
Woven Wire
Cloth
|
Perforated Plate
Square Aperture
|
Perforated Plate
Round Aperture
|
|
Product Code
|
Product Code
|
Product Code
|
|
125 mm
|
UTG-TWSIC1250.Y
|
UTG-TPSIC1250.QY
|
UTG-TPSIC1250.RY
|
|
100 mm
|
UTG-TWSIC1000.Y
|
UTG-TPSIC1000.QY
|
UTG-TPSIC1000.RY
|
|
90 mm
|
UTG-TWSIC0900.Y
|
UTG-TPSIC0900.QY
|
UTG-TPSIC0900.RY
|
|
75 mm
|
UTG-TWSIC0750.Y
|
UTG-TPSIC0750.QY
|
UTG-TPSIC0750.RY
|
|
63 mm
|
UTG-TWSIC0630.Y
|
UTG-TPSIC0630.QY
|
UTG-TPSIC0630.RY
|
|
50 mm
|
UTG-TWSIC0500.Y
|
UTG-TPSIC0500.QY
|
UTG-TPSIC0500.RY
|
|
45 mm
|
UTG-TWSIC0450.Y
|
UTG-TPSIC0450.QY
|
UTG-TPSIC0450.RY
|
|
37.5 mm
|
UTG-TWSIC0375.Y
|
UTG-TPSIC0375.QY
|
UTG-TPSIC0375.RY
|
|
31.5 mm
|
UTG-TWSIC0315.Y
|
UTG-TPSIC0315.QY
|
UTG-TPSIC0315.RY
|
|
25 mm
|
UTG-TWSIC0250.Y
|
UTG-TPSIC0250.QY
|
UTG-TPSIC0250.RY
|
|
22.4 mm
|
UTG-TWSIC0224.Y
|
UTG-TPSIC0224.QY
|
UTG-TPSIC0224.RY
|
|
20.0 mm
|
UTG-TWSIC0200.Y
|
UTG-TPSIC0200.QY
|
UTG-TPSIC0200.RY
|
|
19 mm
|
UTG-TWSIC0190.Y
|
UTG-TPSIC0190.QY
|
UTG-TPSIC0190.RY
|
|
16 mm
|
UTG-TWSIC0160.Y
|
UTG-TPSIC0160.QY
|
UTG-TPSIC0160.RY
|
|
14 mm
|
UTG-TWSIC0140.Y
|
UTG-TPSIC0140.QY
|
UTG-TPSIC0140.RY
|
|
13,2
|
UTG-TWSIC0132.Y
|
UTG-TPSIC0132.QY
|
UTG-TPSIC0132.RY
|
|
12.5 mm
|
UTG-TWSIC0125.Y
|
UTG-TPSIC0125.QY
|
UTG-TPSIC0125.RY
|
|
11.2 mm
|
UTG-TWSIC0112.Y
|
UTG-TPSIC0112.QY
|
UTG-TPSIC0112.RY
|
|
10.0 mm
|
UTG-TWSIC0100.Y
|
UTG-TPSIC0100.QY
|
UTG-TPSIC0100.RY
|
|
9.5 mm
|
UTG-TWSIC0095.Y
|
UTG-TPSIC0095.QY
|
UTG-TPSIC0095.RY
|
|
8 mm
|
UTG-TWSIC0080.Y
|
UTG-TPSIC0080.QY
|
UTG-TPSIC0080.RY
|
|
6.3 mm
|
UTG-TWSIC0063.Y
|
UTG-TPSIC0063.QY
|
UTG-TPSIC0063.RY
|
|
5.6 mm
|
UTG-TWSIC0056.Y
|
UTG-TPSIC0056.QY
|
UTG-TPSIC0056.RY
|
|
5.0 mm
|
UTG-TWSIC0050.Y
|
UTG-TPSIC0050.QY
|
UTG-TPSIC0050.RY
|
|
4.75 mm
|
UTG-TWSIC0047.Y
|
UTG-TPSIC0047.QY
|
UTG-TPSIC0047.RY
|
|
4 mm
|
UTG-TWSIC0040.Y
|
UTG-TPSIC0040.QY
|
UTG-TPSIC0040.RY
|
|
3,35
|
UTG-TWSIF3350.Y
|
----
|
UTG-TPSIC3350.RY
|
|
3,15
|
UTG-TWSIF3150.Y
|
----
|
UTG-TPSIC3150.RY
|
|
2,8
|
UTG-TWSIF2800.Y
|
----
|
UTG-TPSIC2800.RY
|
|
2,5
|
UTG-TWSIF2500.Y
|
----
|
----
|
|
2,36
|
UTG-TWSIF2360.Y
|
----
|
----
|
|
2,0
|
UTG-TWSIF2000.Y
|
----
|
----
|
|
1,7
|
UTG-TWSIF1700.Y
|
|
|
|
1,4
|
UTG-TWSIF1400.YS
|
|
|
|
1,2
|
UTG-TWSIF1200.YS
|
|
----
|
|
1,18
|
UTG-TWSIF1180.YS
|
|
|
|
1,0
|
UTG-TWSIF1000.YS
|
|
|
|
0,850
|
UTG-TWSIF0850.YS
|
|
|
|
0,710
|
UTG-TWSIF0710.YS
|
|
|
|
0,600
|
UTG-TWSIF0600.YS
|
|
|
|
0,500
|
UTG-TWSIF0500.YS
|
|
----
|
|
0,425
|
UTG-TWSIF0425.YS
|
|
|
|
0,335
|
UTG-TWSIF0335.YS
|
|
|
|
0,300
|
UTG-TWSIF0300.YS
|
|
|
|
0,250
|
UTG-TWSIF0250.YS
|
|
|
|
0,212
|
UTG-TWSIF0212.YS
|
|
|
|
0,180
|
UTG-TWSIF0180.YS
|
|
|
|
0,150
|
UTG-TWSIF0150.YS
|
|
|
|
0,125
|
UTG-TWSIF0125.YS
|
|
----
|
|
0,075
|
UTG-TWSIF0075.YS
|
|
----
|
|
0,063
|
UTG-TWSIF0063.YS
|
|
|
“.YS” type sieves are strengthened/reinforced.
|
SCREEN SHAKER
|
|
Dimension
|
570x850x1250 mm
|
|
Weight (approx.)
|
215 kg
|
|
Power
|
550 W
|
