Swell Plate for CBR Swelling Test

Genel Bilgi

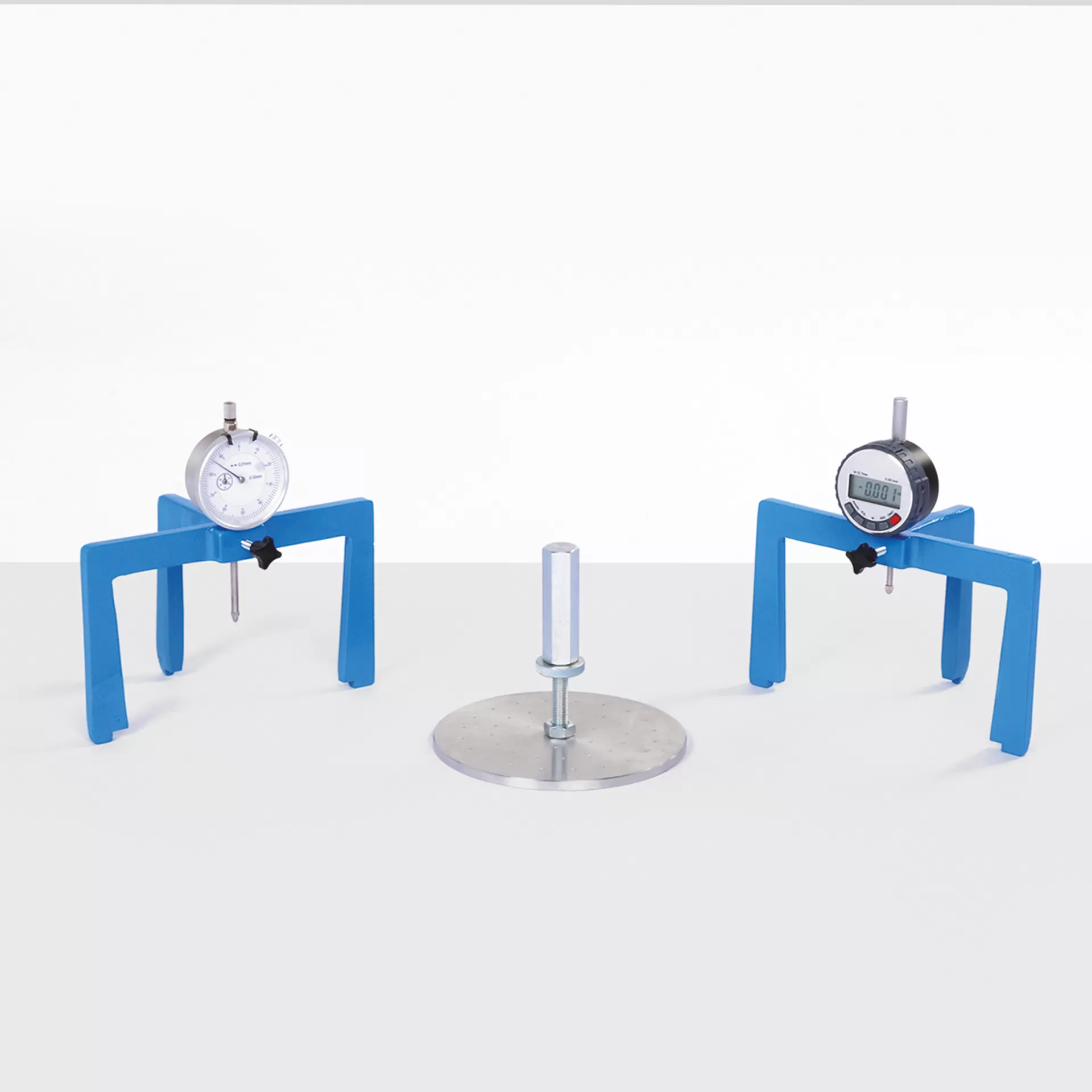

This equipment is used for determining the expansion (swell) of the compacted CBR sample in water.The swell test consists of perforated plate (swell plate) with adjustable stem, dial gauge and dial gauge tripod for mounting swell dial gauge in position on CBR Mould Collar.

Daha Fazla Bilgi Al

BİR UZMANA DANIŞ

Ürün Hakkında
Ürünler
Teknik Özellikler
Standartlar
Aksesuarlar
Dokümanlar

Ürün Hakkında

Swell Plate for CBR Swelling Test

The prefered gauge and each other equipment should be ordered separately for swelling test.

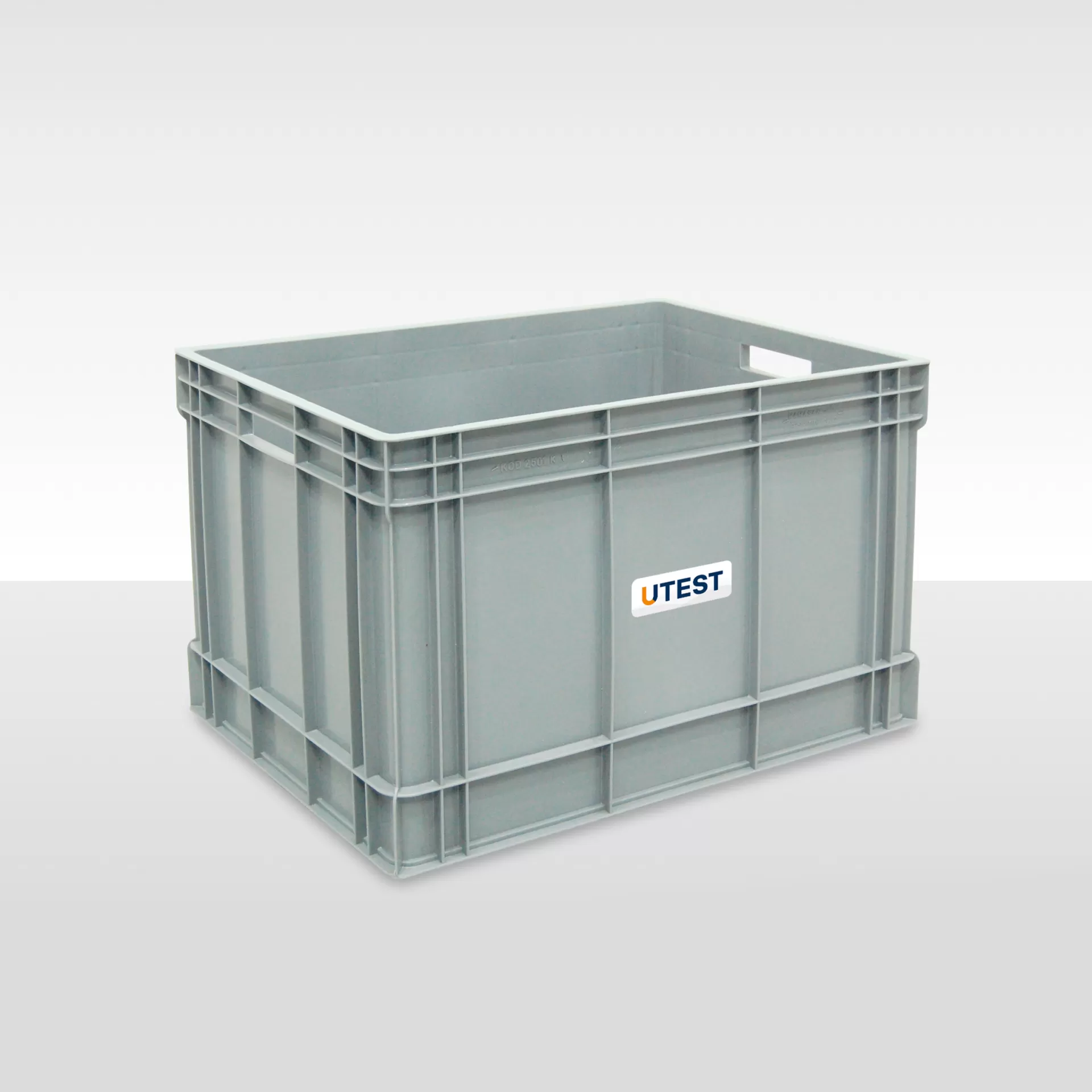

UTS-0794 CBR Soaking Tank is supplied complete with a bottom metal grid.

Ürünler

Ürün Kodu	Açıklama	Adet	İşlem
UTS-0790E.B	Adjustable Stem and Perforated Aluminum Plate for CBR Swelling Test, EN, BS
UTS-0790A	Adjustable Stem and Perforated Brass Plate, ASTM, for CBR Swelling Test
UTS-0790NF	Adjustable Stem and Perforated Plastic Plate, NF, for CBR Swelling Test
UTS-0790AS	Adjustable Stem and Perforated Plate, AS, for CBR Swelling Test
UTS-0792	Tripod for CBR Swelling Test, ASTM, AS, BS, NF, for UTS-0700A, UTS-0700AS, UTS-0610B.E and UTS-0610NF

Teknik Özellikler

Product Code	Dimensions	Weight
UTS-0790E.B	150x150x100 mm	1 kg
UTS-0790NF	150x150x100 mm	0.5 kg
UTS-0792	130x190x120 mm	0.3 kg
UTGM-0120	50x60x120 mm	0.2 kg
UTS-0794	500x700x450 mm	7.7 kg

Standartlar

EN 13286-47; ASTM D1183; BS 1377:4, 1924:2; NF P 94-078; AS 1289.6.1.1

Aksesuarlar

Ürün Kodu	Açıklama	Adet	İşlem
UTS-0792E	Tripod for CBR Swelling Test, EN, for UTS-0610E
UTGM-0120	Analog Gauge 30 mm travel x 0.01 mm division
UTGM-0148	Digital Dial Gauge 25x0,01 mm, LCD Display Data Output
UTGM-0152	Digital Dial Gauge 12,7x0,001 mm, LCD Display Data Output
UTS-0794	CBR Soaking Tank (6 pcs. CBR Mould Capacity)
