Interface / Data Acquisition Units
Interface Units are a sophisticated data acquisition unit which provides the link between software and the transducers connected to the test equipments.

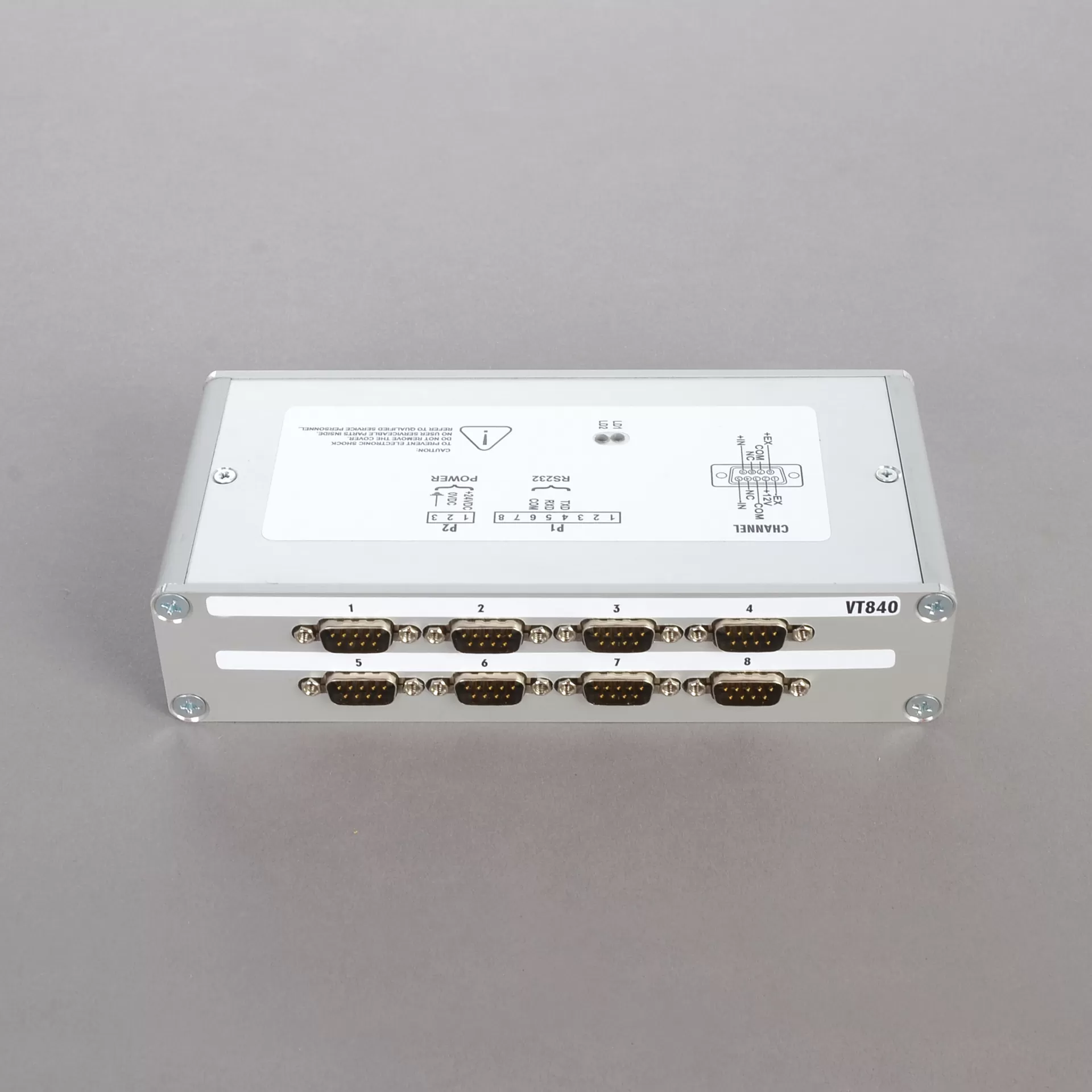

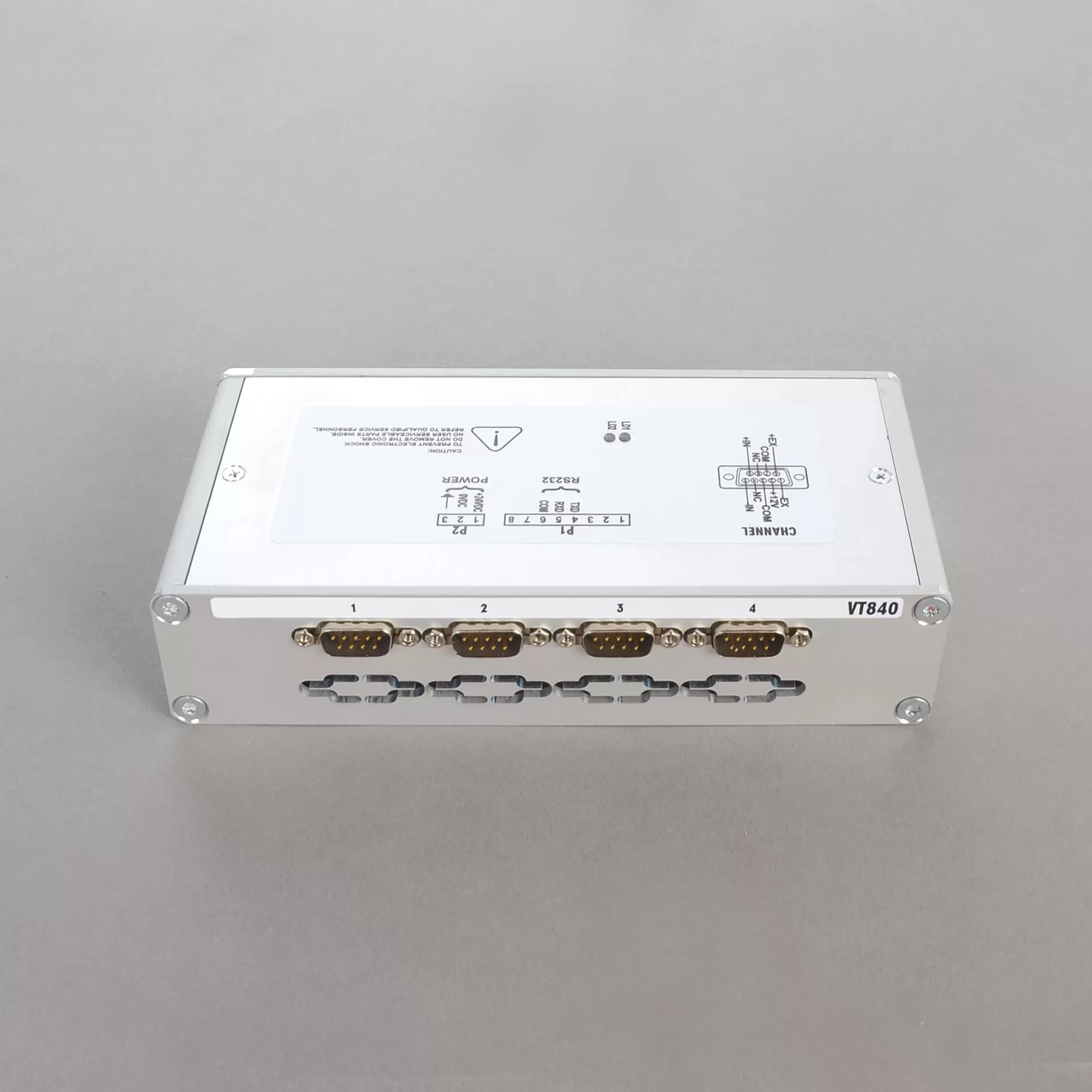

UTCU -0020 Interface Unit is used at triaxial tests and consolidation tests or for general data collecting purposes.
The main characteristics of UTCU-0020 and UTCU-0025 are;
- 4 channel UTCU-0020 model
- 8 channel UTCU-0025 model
- High resolution: 16M points (effective 260.000 points)
- Large permanent memory
- Ethernet port for PC connection
- CPU card by microprocessor 32 bit ARM risk architecture
- 10 (sample/sec) / channel
- 24 bit A/D Convertor (260.000 effective divisions)
- Digital gain selection, suitable for potentiometric transducers
- mv/V Sensors (pressure transducers, load cells, linear transducers)
- 4 Mb memory
UTCU-0030 Interface Unit has 4 channel for data acqusition and suitable for strain gauges and strain gauge type transducers (Pressure,force, displacement, vb.). A/D convertor is 24 bit. 1 micro strain resolution. Max sampling frequency 10 kHz

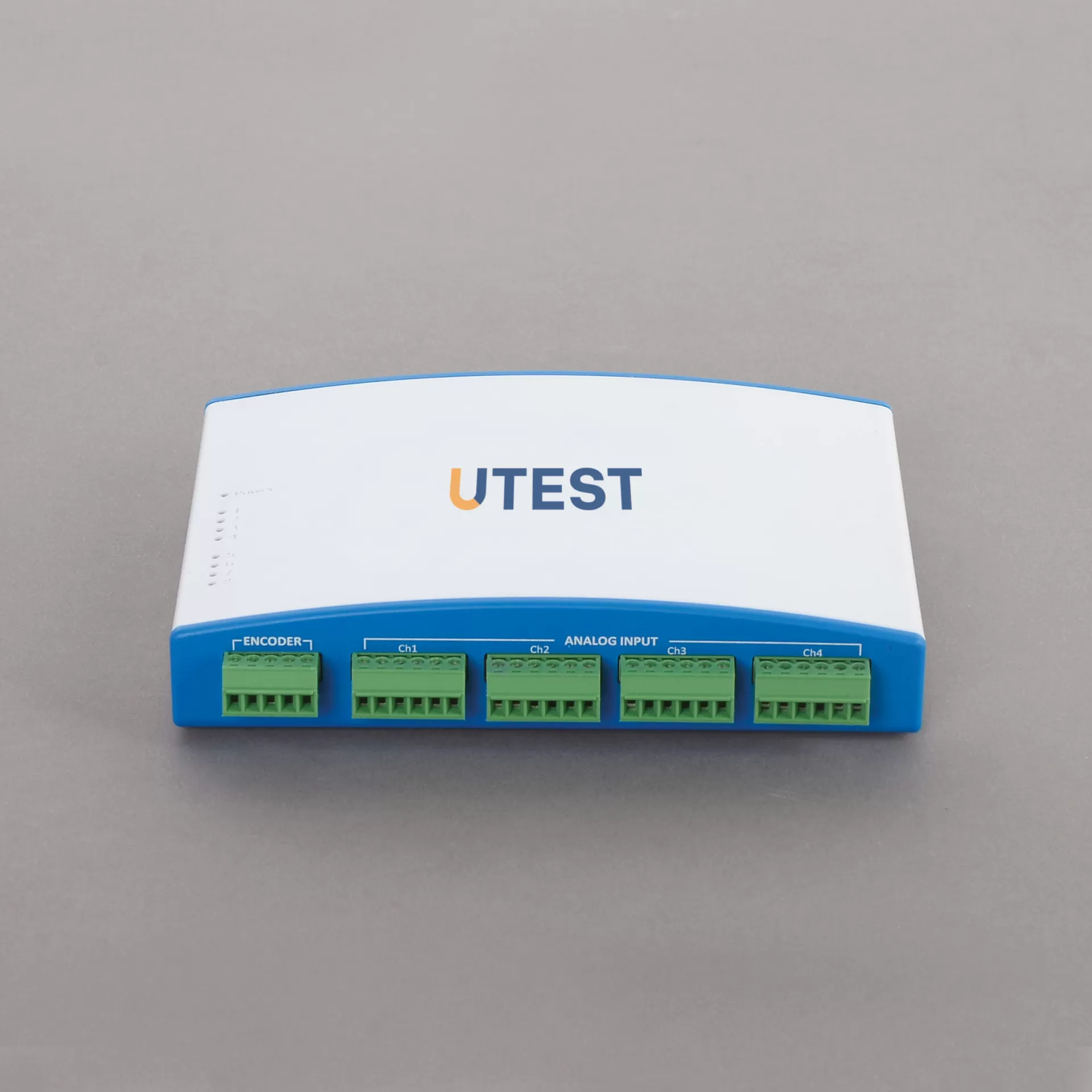

UTCU -0070 Datalogger, 4 channel data acquisition and recorder unit, 32 bit, analog input, output and an encoder input. Can be connected DC voltage, currency, strain gauge, rasyometrik and resistance, thermocouple, RTD( PT100 and PT1000) type sensors. Max sampling frequency 1 kHz. A/D convertor.
The following free UTEST Softwares are supplied with Interface Units and the Datalogger.
- USOFT-0020 Software for UTCU-0020
- USOFT-0025 Software for UTCU-0025
- USOFT-0030 Software for UTCU-0030
- USOFT-0070 Software for UTCU-0070
