Skid Resistance and Friction Tester
Genel Bilgi
The Skid Resistance and Friction Testers are used for the measurement of surface friction properties. The apparatus is suitable for both site and laboratory applications and for Polished Stone Value tests using curved specimens from accelerated polishing tests with the Acelereted Polishing Machine (UTA-0810). UTA-0830E can also be used for testing Paving Stones (EN 1341, EN 1342) and Paving Blocks (EN 1338).
Daha Fazla Bilgi Al
- Ürün Hakkında
- Ürünler
- Teknik Özellikler
- Standartlar
- Aksesuarlar
- Dokümanlar
Ürün Hakkında

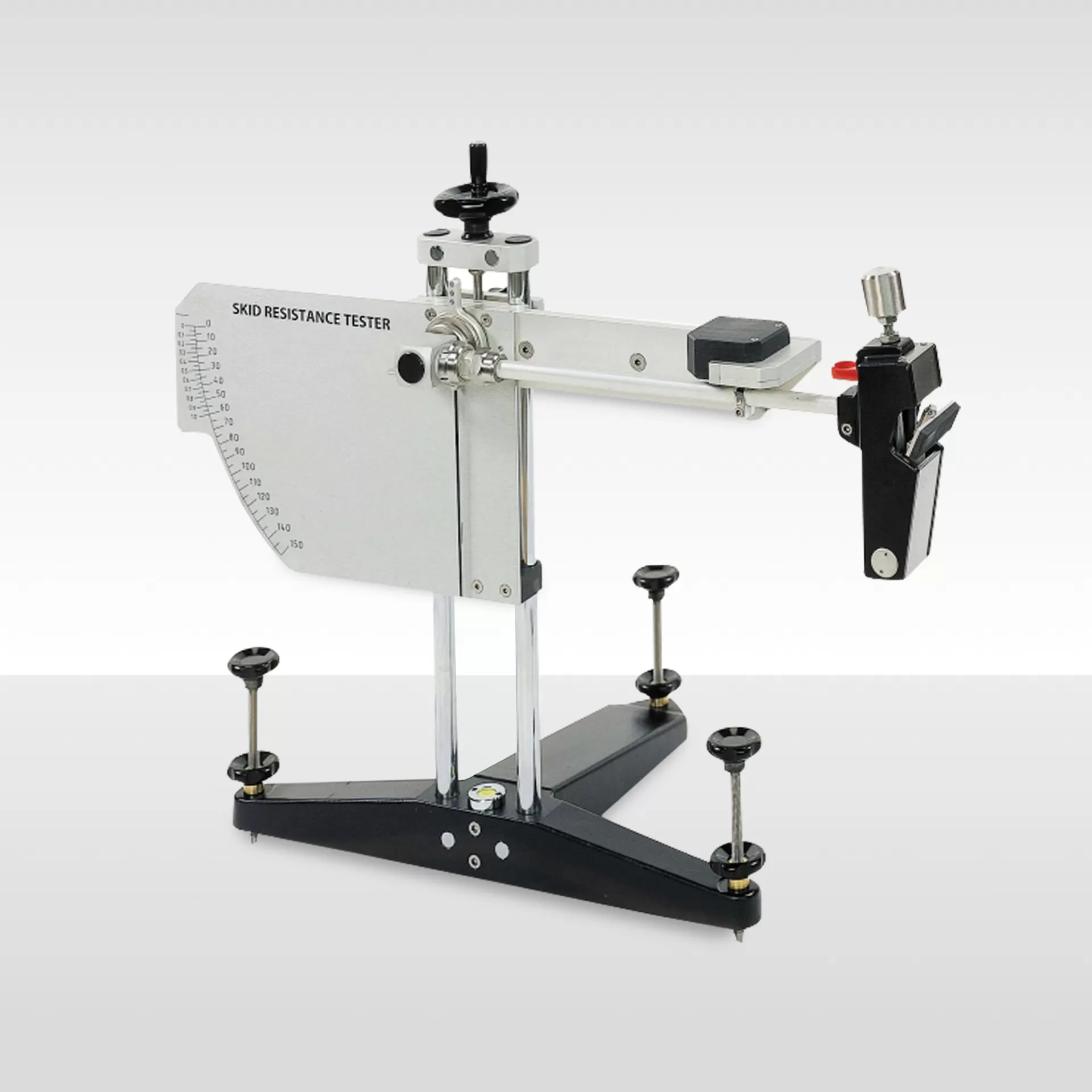

Skid Resistance and Friction Tester
The Skid Resistance and Friction Testers are used for the measurement of surface friction properties. The apparatus is suitable for both site and laboratory applications and for Polished Stone Value tests using curved specimens from accelerated polishing tests with the Acelereted Polishing Machine (UTA-0810). UTA-0830E can also be used for testing Paving Stones (EN 1341, EN 1342) and Paving Blocks (EN 1338).
The apparatus consist of an adjustable pendulum arm, and a spring loaded rubber slider (see spare parts) mounted on the end of the arm.
Rubber sliders (UTA-0832-TRL, UTA-08332-TRL, UTA-0832-4S and UTA-0832-4S) should be ordered separately.
The Skid Resistance and Friction Testers are supplied complete with;
- Additional Scale, for Test on Polished Stone Value Specimens
- Thermometer, 0 to +220°C for Surface Temperature Measurement
- Washing Bottle, for Surface Wetting - 1 L
- Tool Set with case for machine assembly
- Rule for Sliding Length Verification
- Traceability Certificate of Conforming to EN 1097-8 or ASTM E303
- Carrying Case
Ürünler
Ürünler
| Product Code | Description | Number | Process |
|---|---|---|---|
| UTA-0830E | Skid Resistance and Friction Test Set (Skid Tester), EN 1097-8 | ||
| UTA-0830A | Skid Resistance and Friction Test Set (Skid Tester), ASTM E303 |
Teknik Özellikler
Teknik Özellikler
|
Dimensions |
790x760x320 mm (case) |
|---|---|
|
Weight (approx.) |
34 kg |
Standartlar
Standartlar
EN 1097-8, 1338, 1341, 1342, 13036-4; ASTM E303Aksesuarlar
Aksesuarlar
| Product Code | Description | Number | Process |
|---|---|---|---|
| UTA-0832-TRL | Mounted Rubber Slider, TRL rubber, 32 mm width for PSV test (PSV laboratory). Complete with conformity certificate. for UTA-0830 | ||
| UTA-0833-TRL | Mounted Rubber Slider,TRL rubber, 76 mm width for site use, complete with conformity certificate, for UTA-0830 | ||
| UTA-0832-4S | Mounted Rubber Slider, 4S rubber, 32 mm width for PSV test (PSV laboratory). Complete with conformity certificate. for UTA-0830 | ||
| UTA-0833-4S | Mounted Rubber Slider, 4S rubber, 76 mm width for site use, complete with conformity certificate, for UTA-0830 | ||
| UTA-0834 | Metal Base Plate for Polished Stone Value Specimen Clamping, for UTA-0830 | ||
| UTA-0835 | Metal Base Plate for Surface Friction Properties for Natural Stones (EN 1341, EN 1342) and Concrete Paving, Blocks (EN 1338) |
Dokümanlar
Dokümanlar
