Sieve Shaker with Frequency and Time Adjustment
Genel Bilgi
The UTG-0323 Sieve Shaker is fitted with a very efficient clamping device that ensures sieves are held firmly without over-tightening and allows them to be quickly removed and replaced.
Daha Fazla Bilgi Al
- Ürün Hakkında
- Ürünler
- Teknik Özellikler
- Standartlar
- Aksesuarlar
- Dokümanlar
Ürün Hakkında

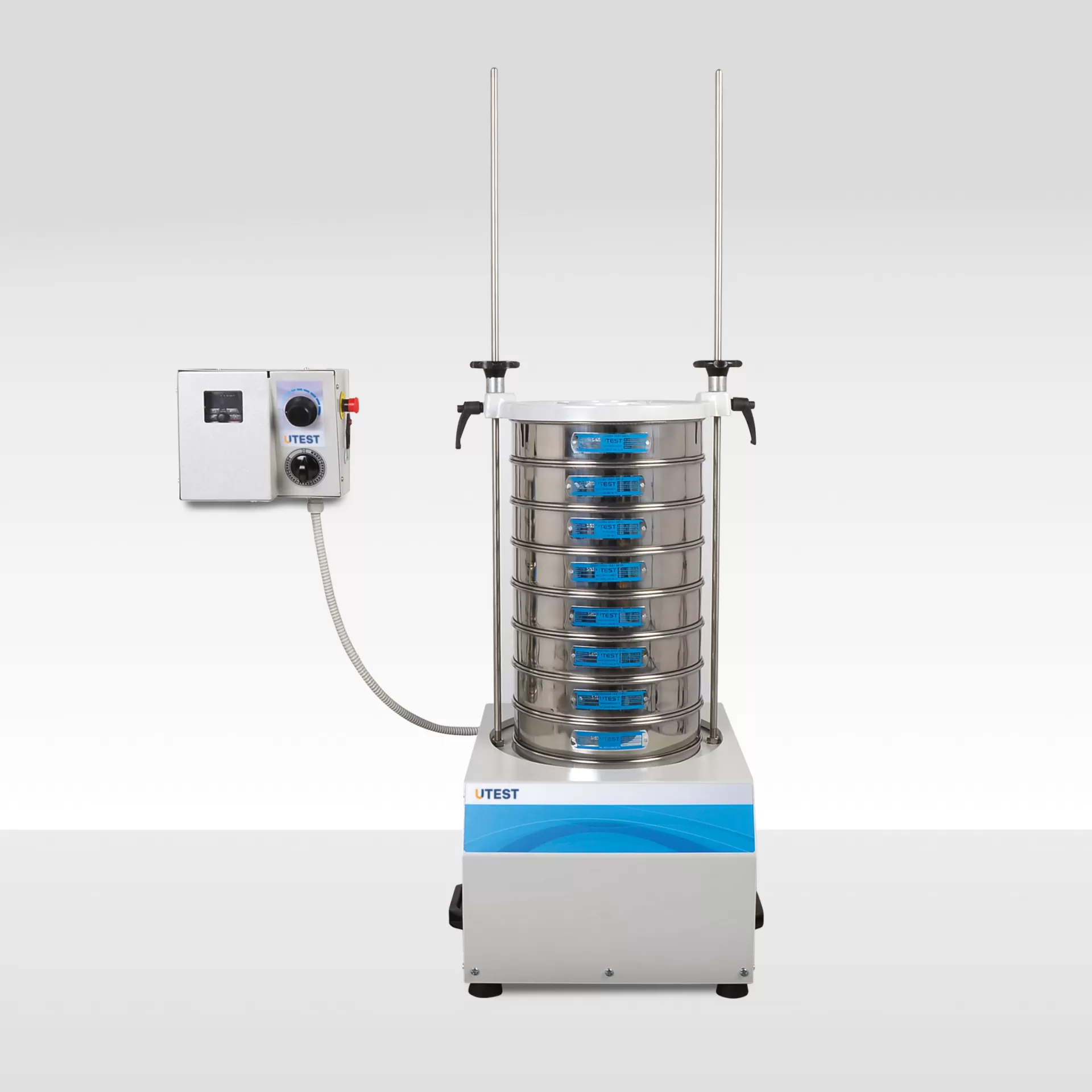

Sieve Shaker with Frequency and Time Adjustment
The UTG-0323 Sieve Shaker is fitted with a very efficient clamping device that ensures sieves are held firmly without over-tightening and allows them to be quickly removed and replaced.
Non-corrodible and non-metallic springs makes the UTG-0323 a maintenance-free device. The shaker is fitted with a timer which can be preset to any duration up to 60 minutes.
The UTG-0323 sieve shaker has been specially designed to operate with heavy samples without loss of performance. It is equipped with a dynamic power source which ensures the right vibration is imparted to the sieves and sample for fast, accurate and reproducible tests. The vertical movement is fixed to ensure the sample spends maximum time on the sieve surface. The unique vibratory action also helps keep the apertures clear and free from binding.
Ürünler
Ürünler
| Ürün Kodu | Açıklama | Adet | İşlem |
|---|---|---|---|
| UTG-0323 | Sieve Shaker with Frequency and Time Adjustment, for 200/300/400 mm (8”/12”/16”) Dia. Frame Sieves, 220-240V 50-60 Hz, 1 ph. | ||
| UTG-0323-N | Sieve Shaker with Frequency and Time Adjustment, for 200/300/400 mm (8”/12”/16”) Dia. Frame Sieves, 110-120V 60 Hz, 1 ph. |
Teknik Özellikler
Teknik Özellikler
|
Sieve Capacity |
15 pieces of 200 mm (8”) sieves + pan and cover 10 pieces of 300 mm mm (12”) sieves + pan and cover 7 pieces of 400 mm (16”) sieves + pan and cover |
|---|
|
Dimensions |
630x630x1300 mm |
|---|---|
|
Weight (approx.) |
140 kg |
|
Power |
370 W |
Standartlar
Standartlar
EN 932-5; ISO 565, 3310-1, 3310-2; ASTM E11, 323; BS 410-1, 410-2Aksesuarlar
Aksesuarlar
| Ürün Kodu | Açıklama | Adet | İşlem |
|---|---|---|---|
| UTG-0324 | Noise Reduction Box for UTG-0323, UTG-0326 and UTG-0328 Sieve Shakers |
Dokümanlar
Dokümanlar
