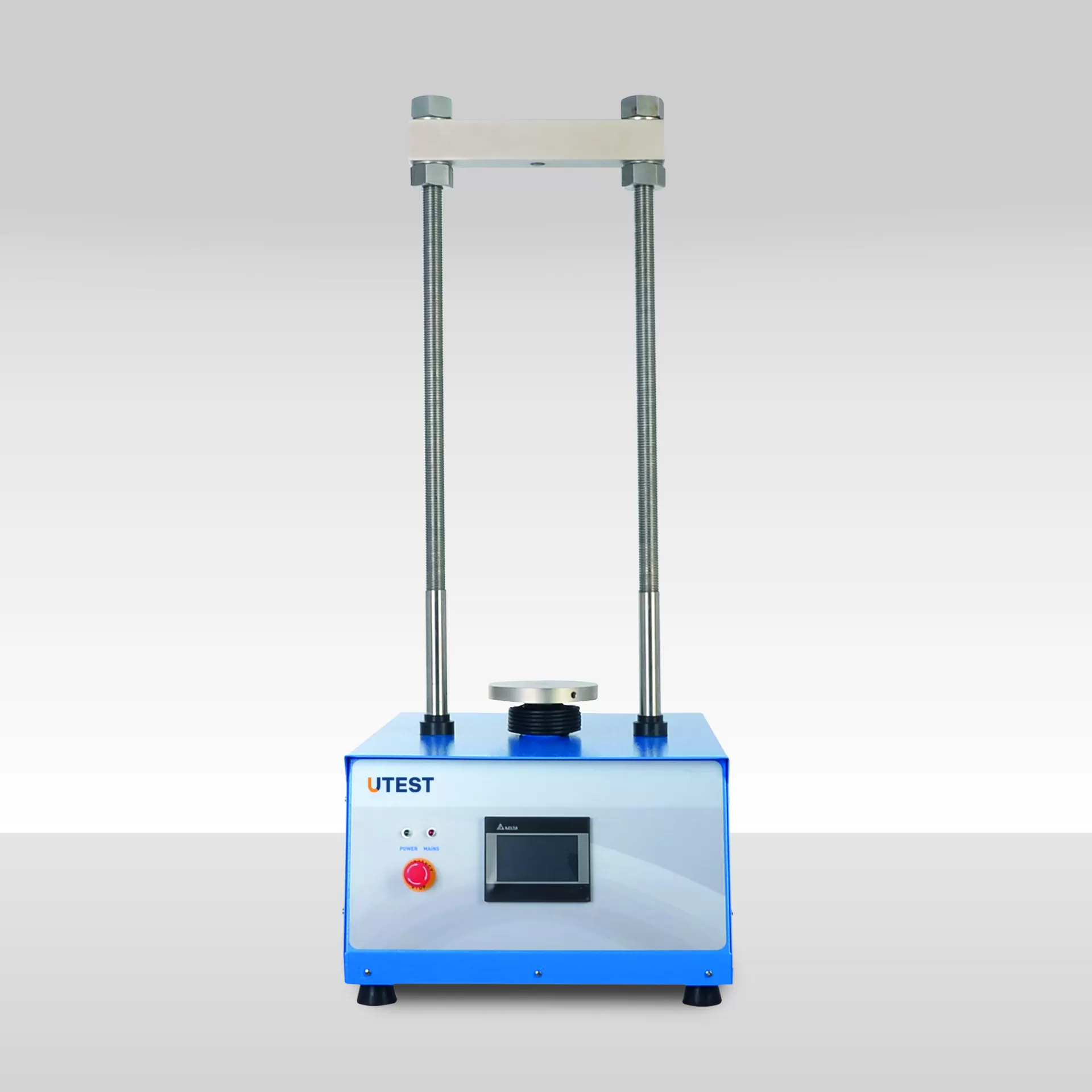

Multiplex Machine with Servo Motor and LCD Control

UTM-0107.SMPL Multiplex Machine Multiplex Machine with 50 kN (11.200 lbf) frame is equipped with a servo motor and LCD control system. By displacement control, the UTM-0107.SMPR with appropriate accessories can perform soil tests such as CBR, uniaxial and also asphalt tests such as Marshall stability, semi circular bearing strength(SCB), indirect tensile (IDT/ TSR).

Depending on the test performed load ring, digital dial gauge (UTGM-0148 25mm veya UTGM-0132 50 mm) and other test equipment which are written below table should be ordered separately

UTM-0107.SMPL Multiplex is supplied complete with;

Holders ( UTM-0114 and UTAS-1059),

Lower compression platen

Ürünler

Product Code	Description	Number	Process
UTM-0107.SMPL	Multiplex Universal Electromechanic Test Machine Frame with LCD Control Ssystem, 50 kN, 220-240V 50-60 Hz, 1 ph.
UTM-0107.SMPL-N	Multiplex Universal Electromechanic Test Machine Frame with LCD Control Ssystem, 50 kN, 110-120V, 60Hz, 1ph.

Teknik Özellikler

MATERIAL

TEST/METHODS

STANDARDS

ACCESSORIES

SOIL

CBR (California Bearing Ratio) Penetration Test

EN 13286-47

BS 1377:4

ASTM D1883 AASHTO T193

NF P94-078

AS 1289.6.1.1

UTGM-1350 Load Ring, 50 kN,

UTGM-0148 Digital Dial Gauge, 25 x 0.01mm,
UTS-0853 Holder for UTGM-0148)
UTS-0870 CBR Penetration Piston

SOIL

Unconfined Compressive (UC) Strength of Cohesive Soil

BS 1377-7

ASTM D2166

UTGM-1330 Load Ring, 5 kN
UTGM-1340 Load Ring, 10 kN (ALTERNATIVE)
UTM-0115 Upper Compression Platen (spherical-seated)

BITUMINOUS MIXURES

Marshall Test

EN 12697-34

ASTM D1559, D5581, D6927

AASHTO T245

NF P98-0251-2

UTGM-1350 Load Ring, 50 kN,
UTAS-1086 Marshall Penetration Piston
UTAS-1057 Breaking Head Stability Mould, cast iron, for 4" (101,6 mm) Marshall Samples
UTAS-1058 Breaking Head Stability Mould, cast iron, for 6" (152,4 mm) Marshall Samples

BITUMINOUS MIXURES

Indirect Tensile

(IDT) Strength

Tests

Tensile

Strength Ratio

(TSR) Tests

EN12697-23

EN 12697-12 (Method A)

ASTM D6931

AASHTO T283

UTGM-1350 Load Ring, 50 kN,

UTAS-1086 Marshall Penetration Piston

UTAS-1063 Indirect Tensile (IDT) Strength /TSR Test Jig / Lottman Breaking Heads with Ø100mm loading strips.EN, ASTM, AASHTO

UTAS-1064 Pair of Loading Strips for Ø150 mm bituminous specimens. EN, ASTM for UTAS-1063 and UTAS-1066

UTAS-1065E Pair of Loading Strips for Ø160 mm bituminous specimens EN for UTAS-1063

UTAS-1066 Indirect Tensile (IDT) Strength / TSR Test jig / Lottman Breaking Heads with Ø4" loading strips. EN, ASTM, AASHTO.

UTAS-1067A Pair of Loading strips for Ø6" bituminous specimens.ASTM, AASHTO. For UTAS-1066 and UTAS-1063

BITUMINOUS MIXURES

Semi Circular Bending (SCB) Test

EN 12697-44

UTGM-1350 Load Ring, 50 kN

UTGM-1340 Load Ring, 10 kN ( ALTERNATIVE)

UTAS-1086 Marshall Penetration Piston

UTAS-1081E Semi-Circular Bending Test Jig, EN

UTAS-1082E Pair of Bearing Strips, Metal, EN

Test Speed	0,2 – 51 mm/min
Frame Capacity	50 kN
Dimensions	470x600x1200 mm
Weight (approx.)	105 kg

Test Speed

0,2 – 51 mm/min

Frame Capacity

50 kN

Dimensions

470x600x1200 mm

Weight (approx.)

105 kg
