In-Situ CBR Test Apparatus
The UTS-0865B In-situ CBR Test Apparatus, 50 kN capacity,is used for the on-site determination of the bearing capacity of soils used in road construction.

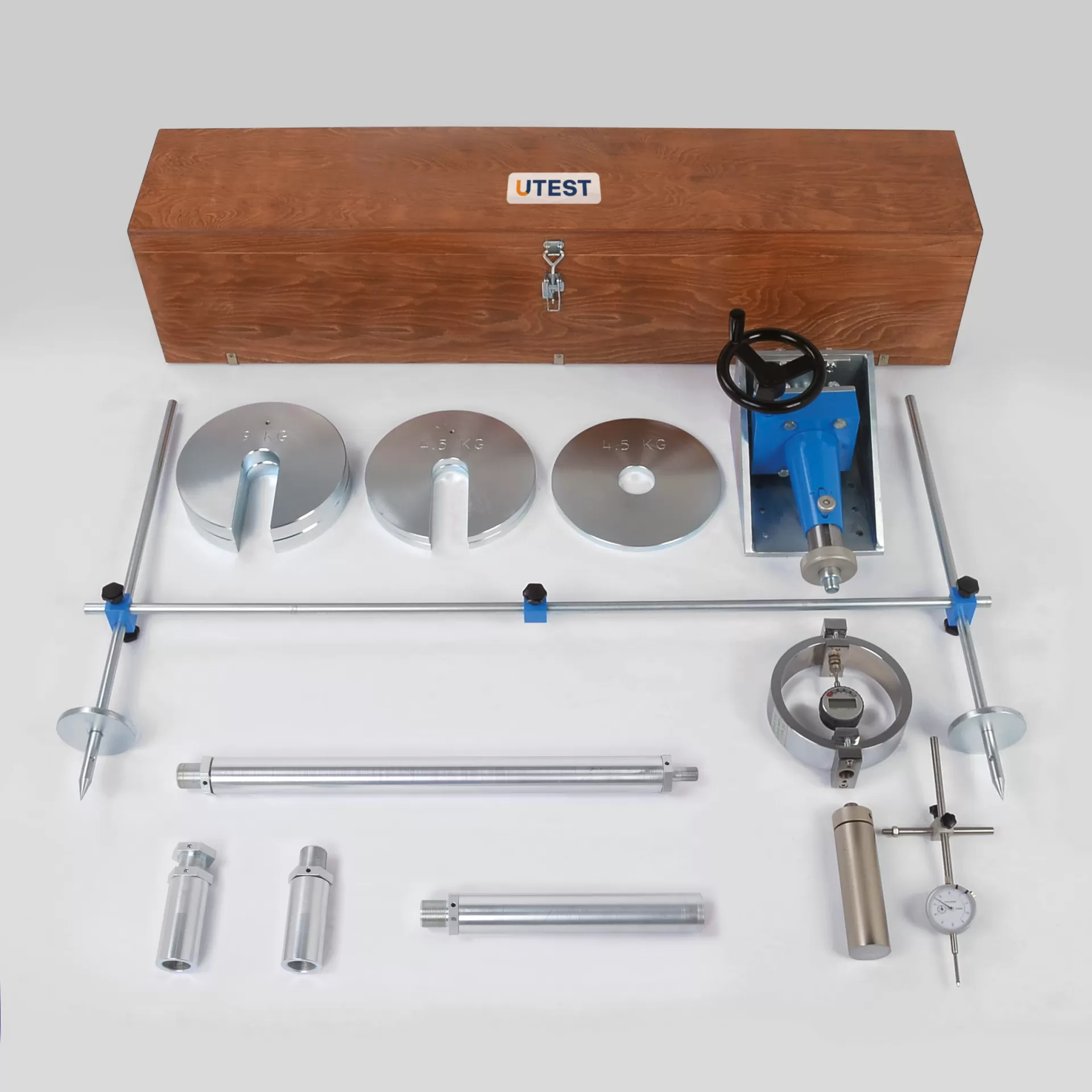

The set consists of:
• 50 kN capacity mechanical jack with ball seating
• 50 kN capacity load ring with an adaptor
• Analog penetration dial gauge (30 mm travel x 0.01 mm) with connection part
• CBR Penetration piston (UTS-0870)
• Set of extension rods
(2 pcs. 110 mm, 1 pcs. 300 mm and 1 pcs. 600 mm length)
3 pcs. nipples, a height adjustment bolt and its nut)
• Datum bar assembly with two tripod stands
• 4.5 kg annular surcharge weight
• 4.5 Kg slotted surcharge weight (2 pcs.)
• 9 kg slotted surcharge weight (2 pcs.)
• Vehicle bracket

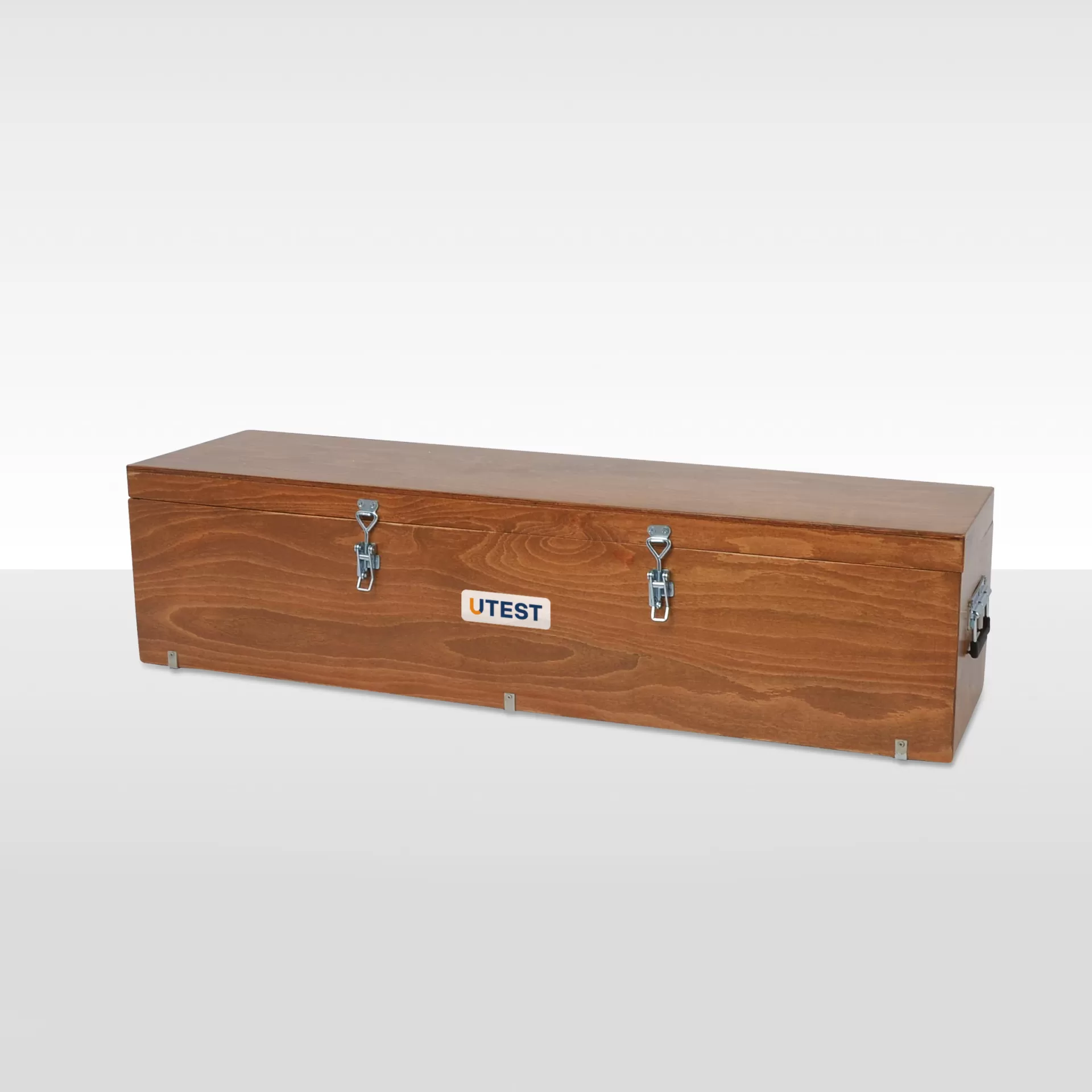

• Wooden carrying case

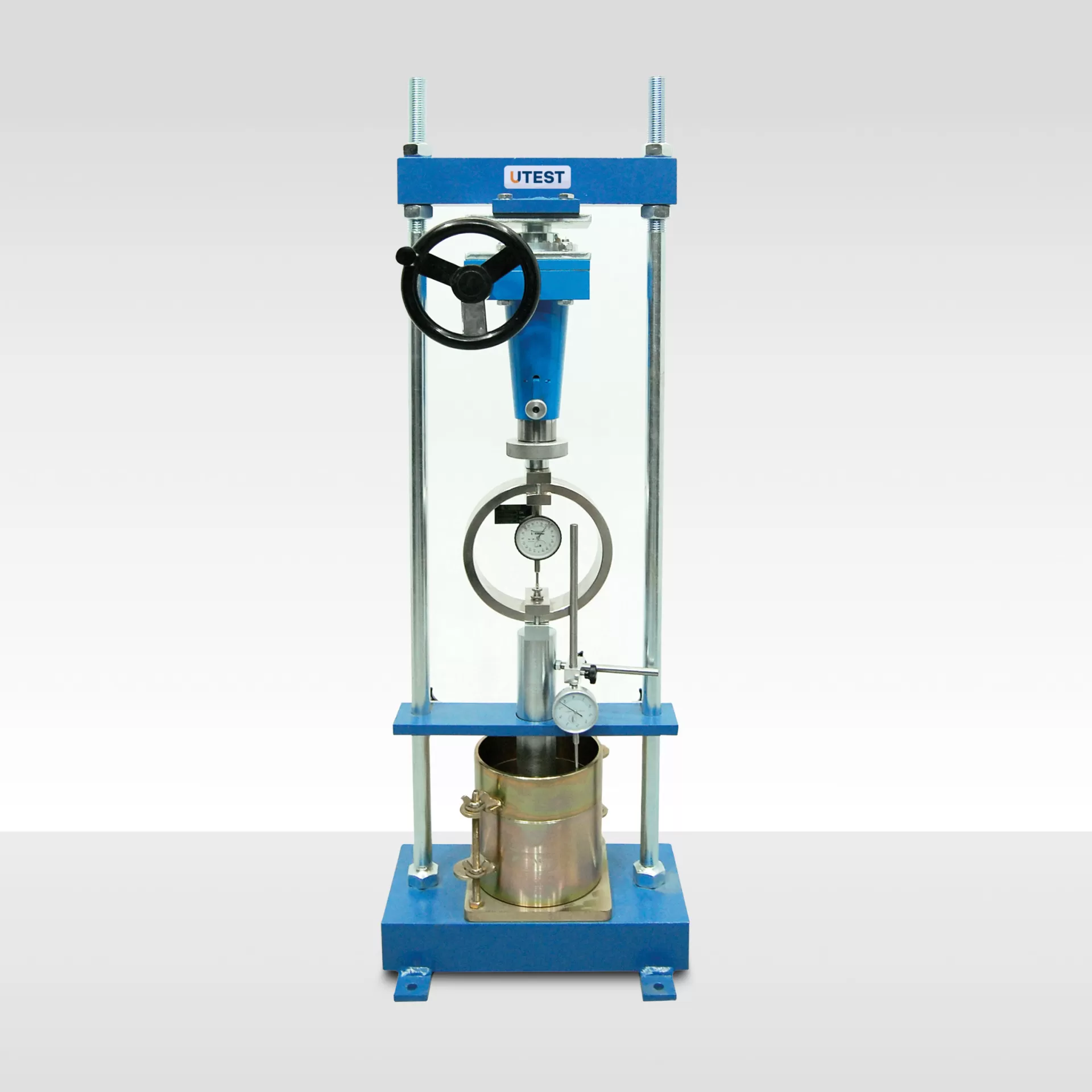

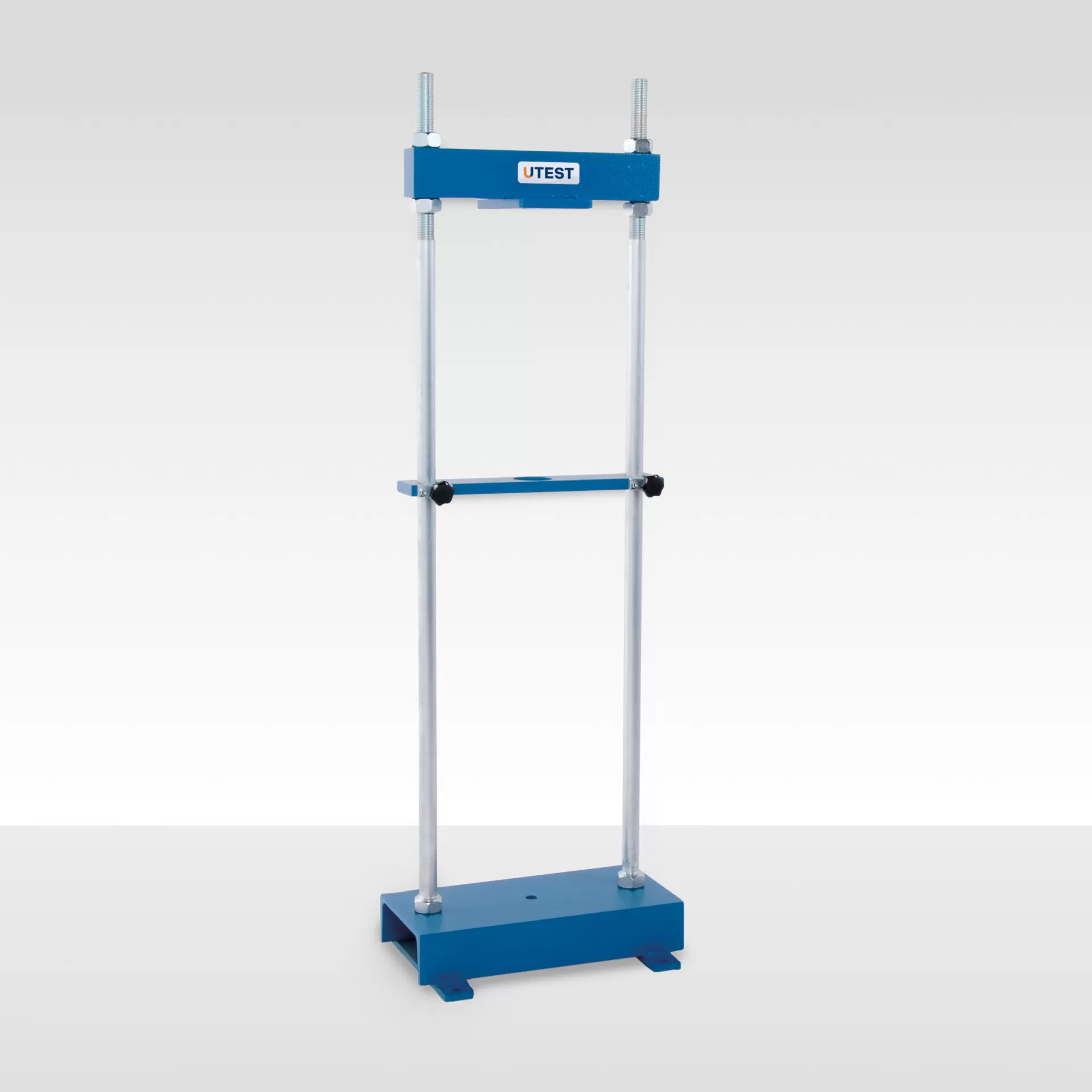

In-situ CBR Test Apparatus, used for the in-situ determination of the bearing capacity of soils.The UTS-0867 Conversion Frame is used to convert the IN-situ CBR test to a mechanical laboratory CBR test machine.
The system is easily assembled onto the conversion frame with the addition of some of the accessories included in UTS-0865. The frame is used with the jack, load ring, CBR mould and penetration piston.
Supplied complete with wooden box. 50 kN load ring, 1 m extension rod with nipple (UTS-0866) should be ordered seperately.
