Automatic Soil Consolidation Testing Machine

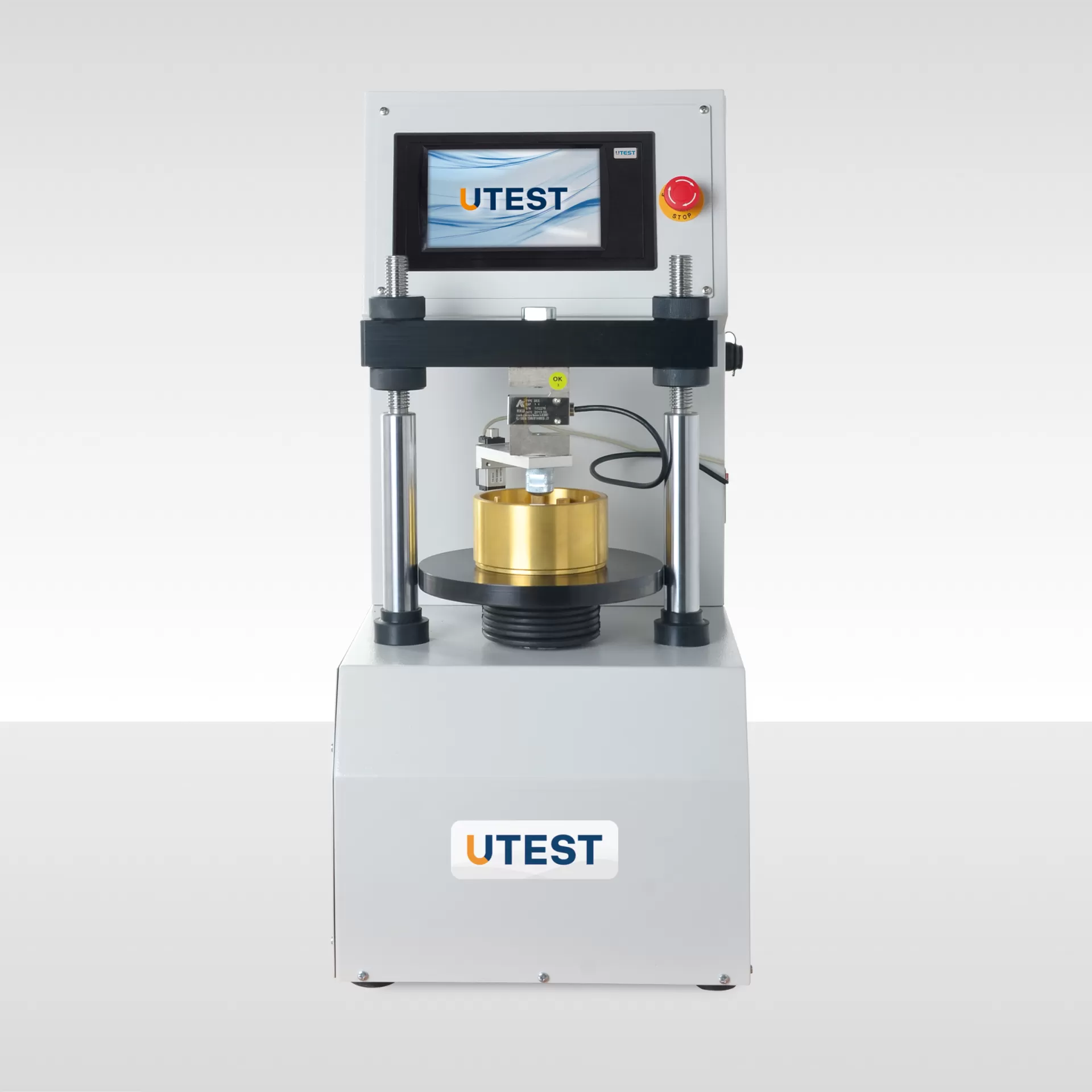

Utest Automatic Soil Consolidation Testing Machine, UTS-0305.SMPR is used for determination of one-dimensional consolidation properties of soils using incremental loading and measurement of swelling potential of soils. Test machine comprises a rigid frame, electromechanical motor, optimized PID closed loop control system, UTouch high resolution touchscreen and a high precision load cell.
Advanced closed loop control system specially designed for UTS-0305.SMPR assures accurate loading and precise load control over a wide range of load increments. Machine can apply pre-defined loads for pre-defined intervals using UTouch control panel and perform one-dimensional consolidation tests in accordance with ASTM D 2435 Test Method A. Machine can display both axial strain vs log time and axial strain vs square root of time graphs real time on the UTouch touchscreen.
Utest Automatic Soil Consolidation Testing Machine is supplied with Usoft-0305, Utest Software for Soil Consolidation Tests. Using USOFT-0305 users can perform one-dimensional consolidation testing in accordance with ASTM D2435 Method B.The software can automatically calculate end of primary consolidation (d100) and coefficient of consolidation (cv) and perform the test automatically. Using this method, the machine can perform consolidation tests quicker and in a more reliable way by eliminating the need for manual intervention thus reducing the risk of human error.
1. Machine Control & Data Acquisition:
• Operates via a networked computer.
• Supports seamless communication with Utest Software and advanced test-specific modules.
2. Real-Time Visualization:
• Displays graphical charts and numerical test data in real-time.
• Ensures precise monitoring with an effective sampling rate of 50 readings per second.
3. Data Storage & Management:
• Unlimited test storage with up to 3000 data points per test.
4. Advanced Graphing & Reporting:
• Offers robust graphing capabilities for comprehensive data visualization.
• Enables exporting of reports to Excel or CSV formats.
• Custom integration/export solutions available for systems like LIMS, EQuIS, and gINT.
5. Customization:
• Fully customizable to adapt to specific requirements and workflows.
6. Backup and Firmware Update Features
The entire Utouch screen allows you to back up to a USB at any time and restore it when needed.
The easy firmware update interface allows the firmware to be updated via a USB flash drive."
Test reports can be displayed on USUFT-0305 or exported to usb flashdrive in *.xls format for detailed analysis.
Consolidation cells, calibration disc and apparatus for sample preparation should be ordered separately. The required PC computer is not supplied.
