Vacuum Pumps
UTEST supplies high quality single and dual stage vacuum pumps for providing the vacuum power which is required for various applications in material testing.

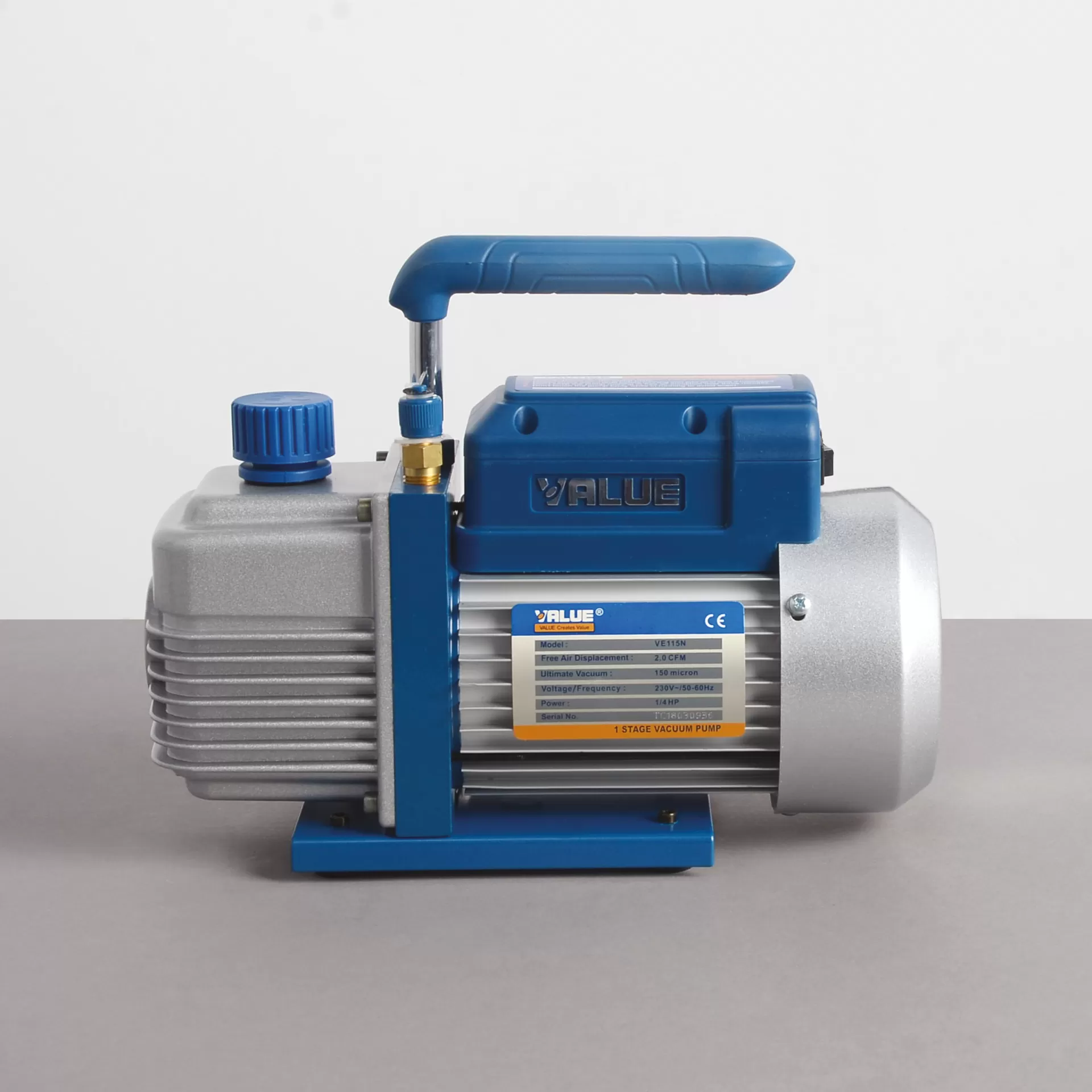

- Two stage rotary-vane design improves the ultimate vacuum and pump speed and reduces the evacuation time.
- The integrated pump body design ensures the reliability and easy maintenance.
- Built-in oil pump cycling design forced-lubricates the pump chamber and sliding bearing and ensures its lubrication and seal.
- Anti-Suckback design prevents oil from returning back to the system.
- The intake filter can prevent foreign matter from entering into the pump chamber and the exhaust fitting separates oil vapour from the exhaust flow.
- Aluminium oil housing, trestle and motor cover forms a rigid and light design.
- Thermal protection of the motor makes the pump to run steadily and ensures safety.

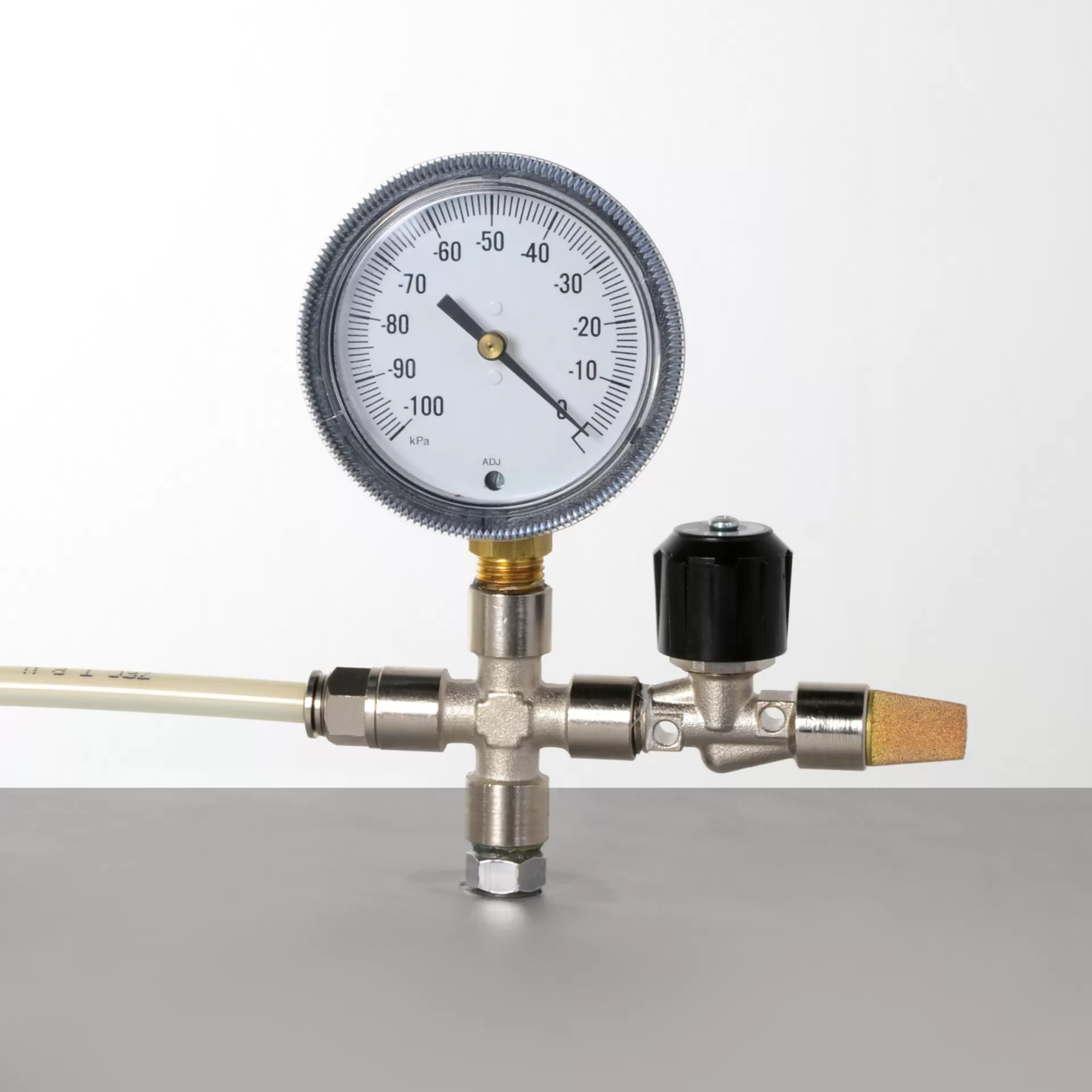

UTGE-3552 Vacuum Gauge has (-100/0) kPa scale range, 1,0 % of scale range accuracy and 1kPa graduation.

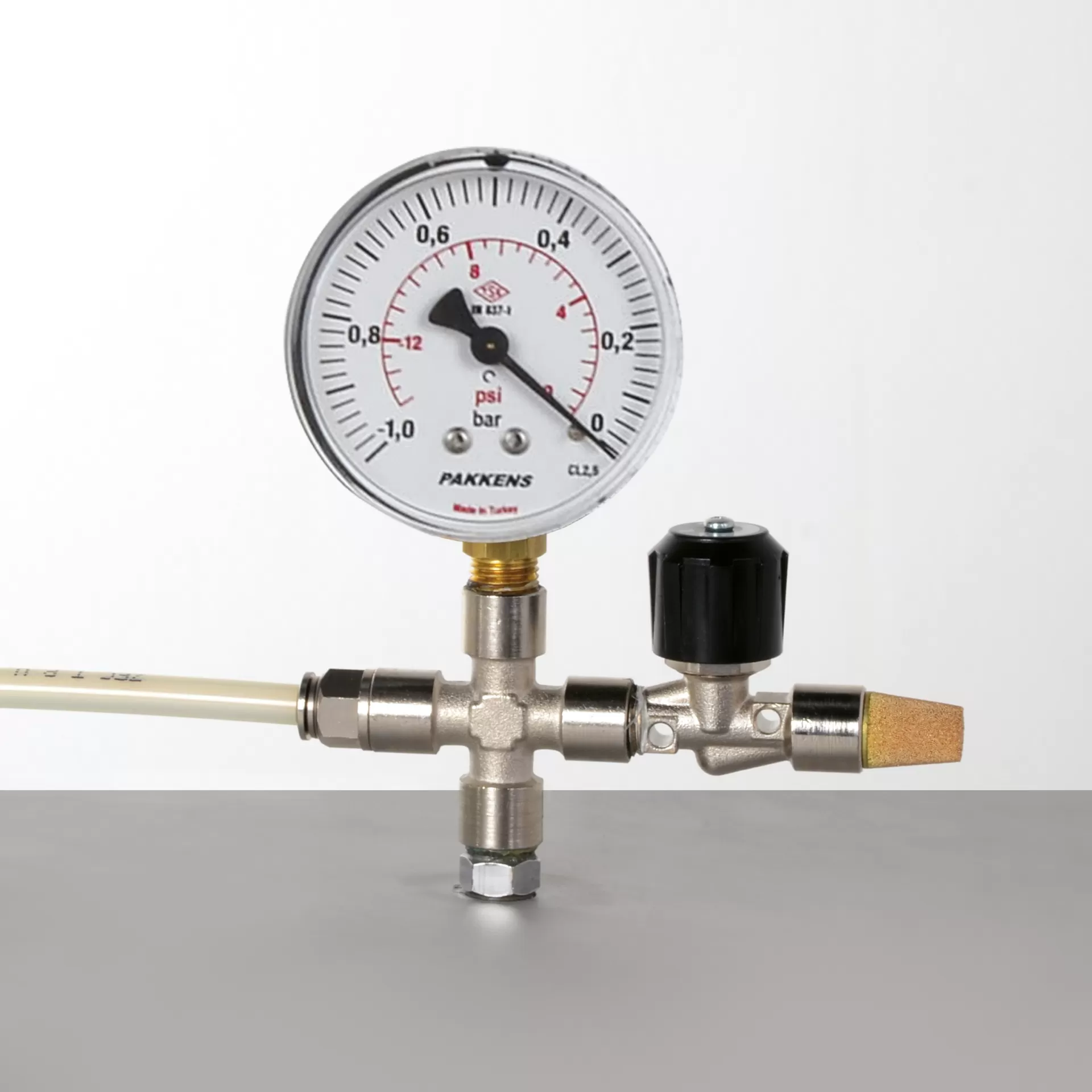

Vacuum Gauges are supplied complete with a valf, 4-way dispenser, muffler and ¼-8 oto-nipple.
Vacuum Pumps are supplied complete with 3 m plastic tube (Ø8mm OD) and ¼-8 oto-nipple.
UTGE-3572 is supplied with 2 pcs. ¼-8mm oto nippel.

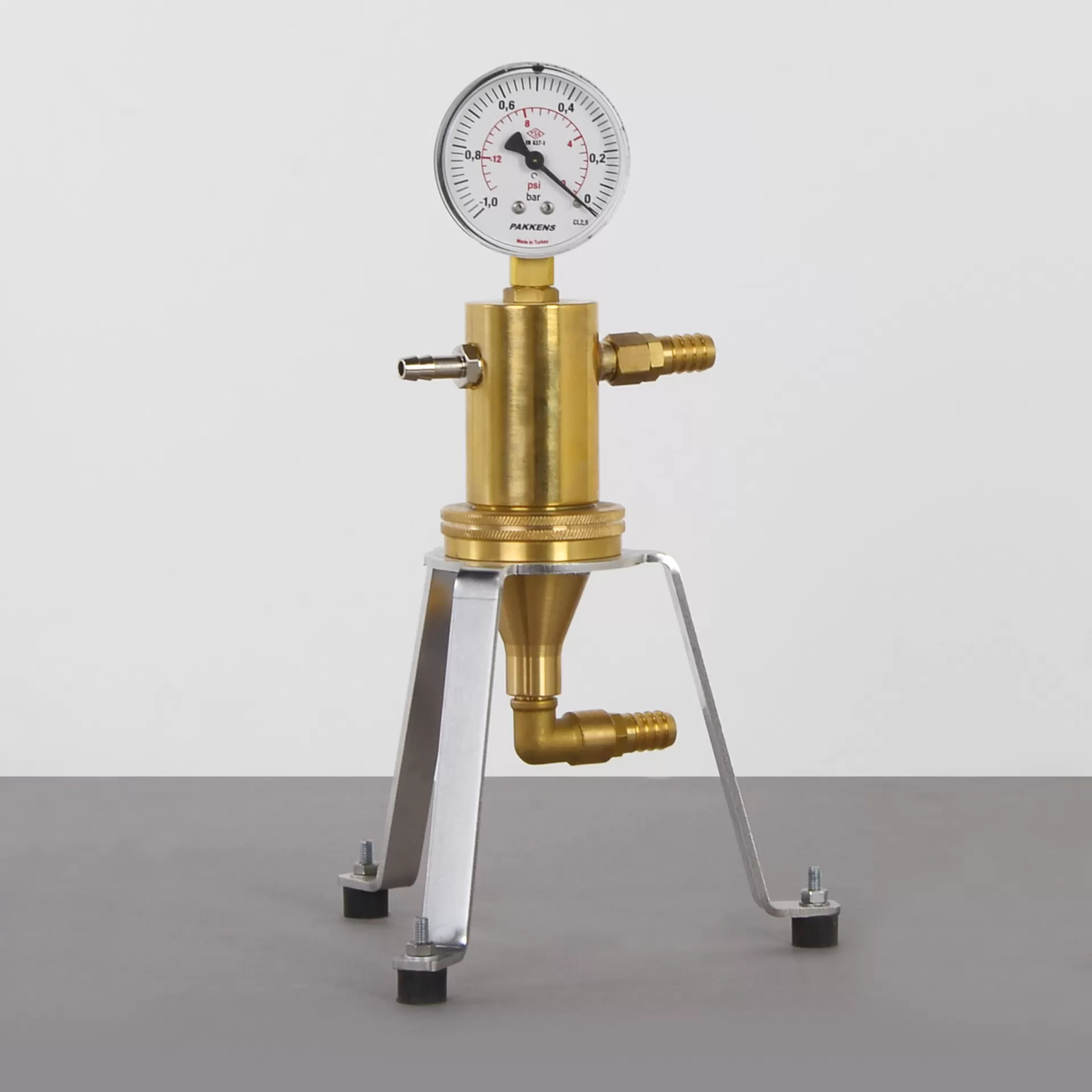

UTGE-3590 Water trompe/aspirator filter pump is supplied complete with 2m plastic tube, 1m rubber tube and 4 pcs. tube clamps.
