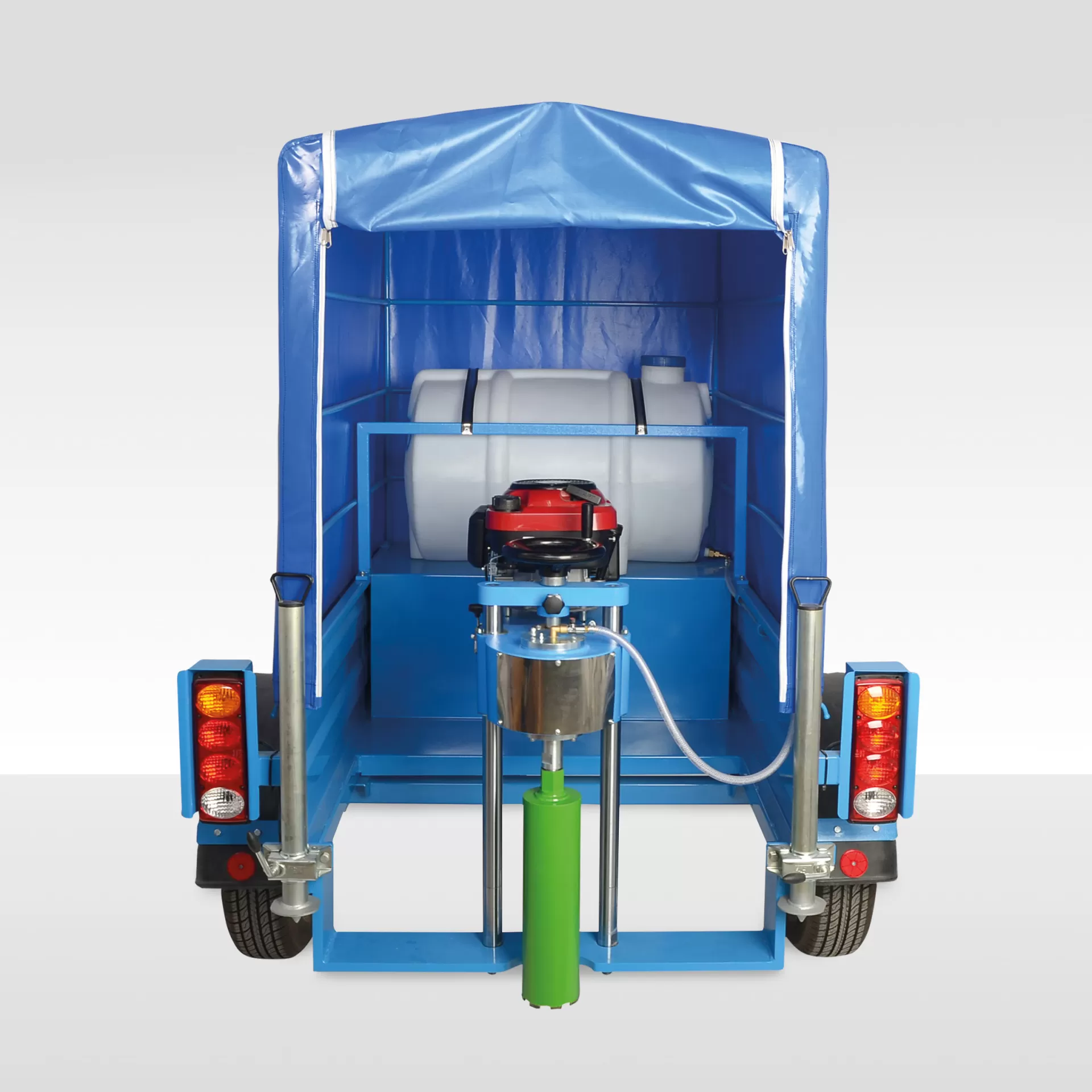

Core Drilling Machine on Trailer
Portable UTAS-2105Core Drilling Machine is designed to cut cores up to 150 mm diameter from concrete, asphalt and similar hard construction materials.
The machine comprises a vertical support column which carries the drill head/ motor assembly. The motor assembly comprises a 6.5 hp petrol engine.
A ball screw mechanism enables close control of the drilling pressure and rapid return when drilling is completed. A water spraying assembly is mounted on the machine.
The drilling machine is installed in a trailer for fast and precise sampling on-site. 100 litre water tank provides continuous lubrication during drilling to save time.
The two-wheeler taut liner trailer is fully equipped with brake lamps/hazard lashers/retro reflectors conforming to road traffic regulations.
The trailer is designed with a space to be used for storing the core samples. The two fixing legs are robustly designed for improved stabilization.
Coring Bits should be ordered separately.
