Laboratory Type Crusher and Grinder

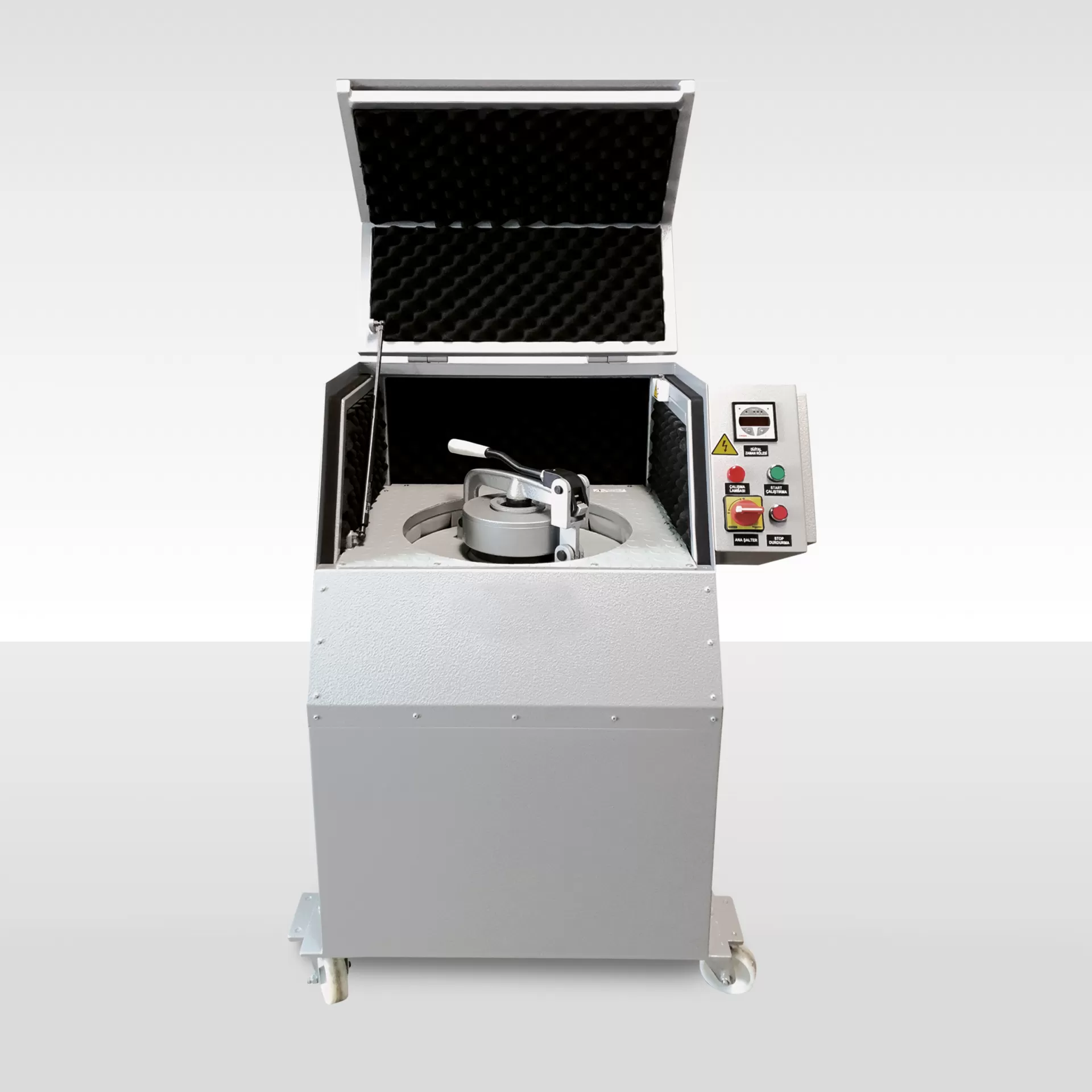

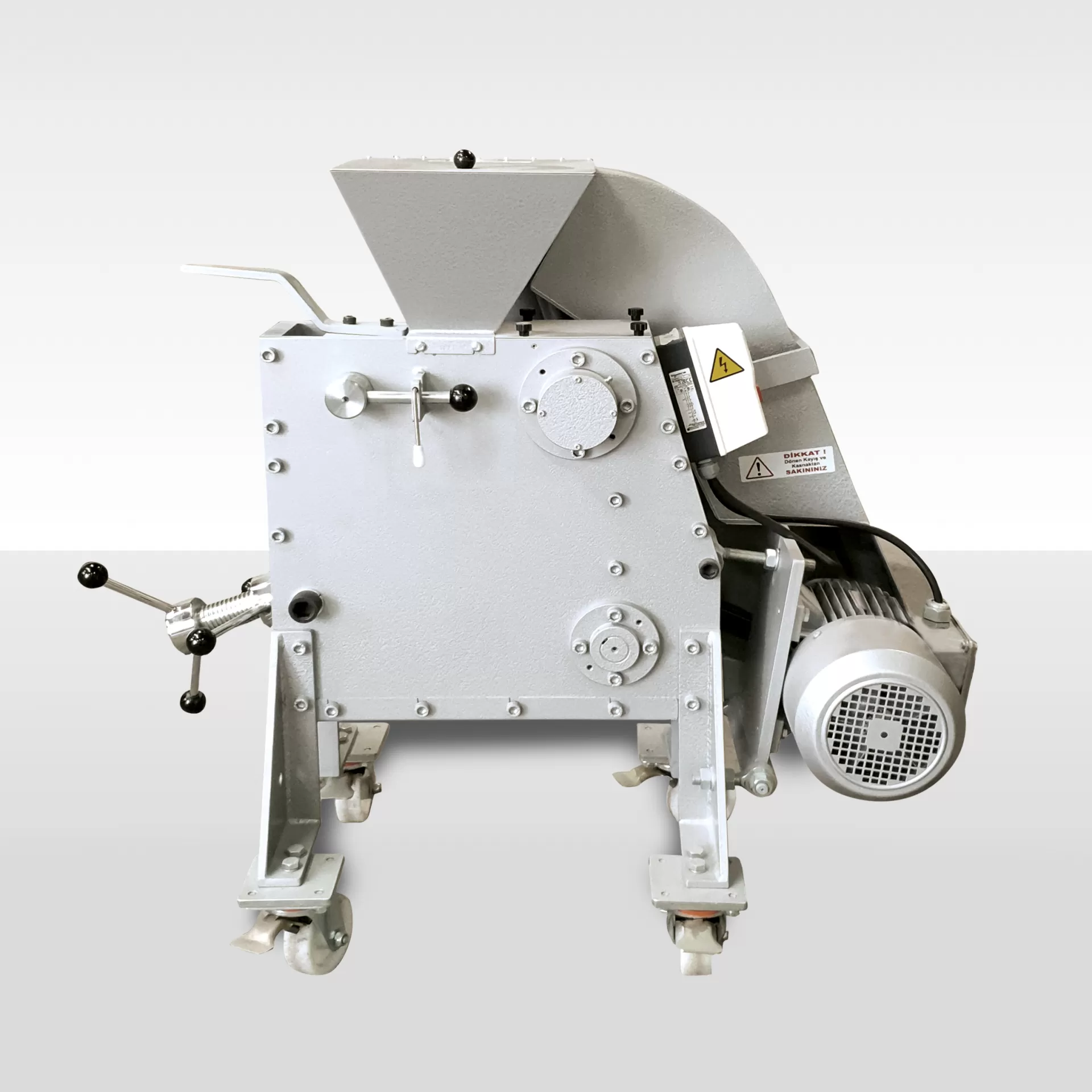

UTA-0360 is used for crushing, UTA-0365 is used for grinding cement clinker, ceramics, basalt, chamotte, construction materials, alloys, coal, coke, feldspar, glass and various materials in the laboratory when smaller sample sizes are required for testing. Three models are available (see Technical Specifications) depending on different feed sizes, output grain sizes and capacity requirements.
Teknik Özellikler
|
Product Code
|
UTA-0360-C
|
UTA-0365-C
|
|
Feed Size
|
100 mm
|
< 15 mm
|
|
Output Grain Size
|
< 500 μm 0-8 mm, adjustable
|
38 μm max. 10 μm
|
|
Capacity
|
150 kg/h
|
(*)
|
|
Dimensions
|
482x1044x1015 mm
|
650x730x1150 mm
|
|
Weight (approx.)
|
250 kg
|
330 kg
|
|
Power
|
4 HP
|
1,5 HP
|
(*) Dijital setting of grinding time from 0 up to 999 h or 999 min. or 999 seconds
