Length Comparators

Genel Bilgi

Length Comparators are used to determine the length changes on different type of hardened mortar and concrete prisms with different sized.


Daha Fazla Bilgi Al

Ürün Hakkında

Length Comparators

Length Comparators are used to determine the length changes on different type of hardened mortar and concrete prisms with different sized.

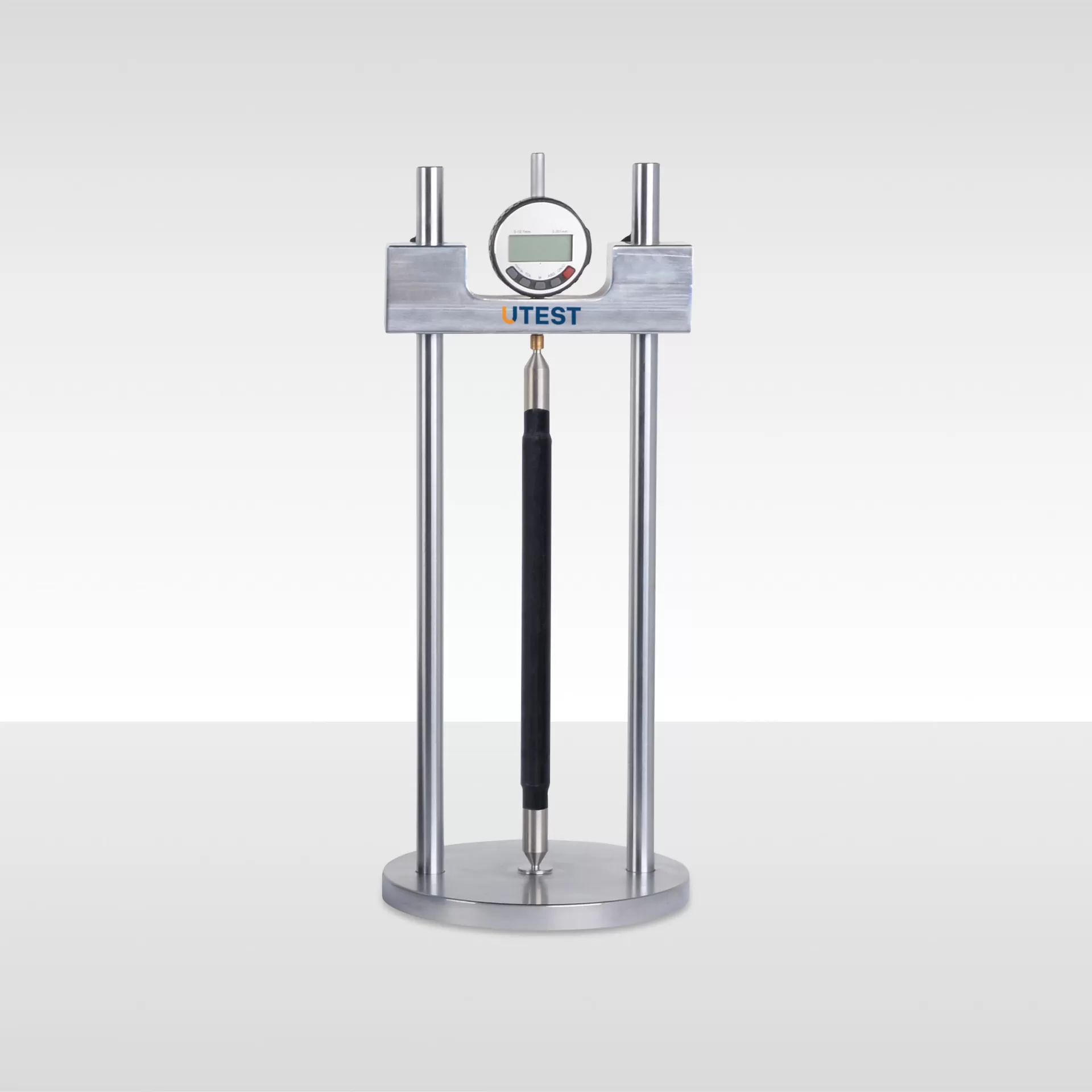

The sets consist of a length measuring frame with measuring device attached to it. The comparators come with 4  different models, UTCM-0200 and UTC-1170 are with 0.001 mm x 12,7 mm digital dial gauge and UTCM-0210  and UTC-1175 are with special 0.0001 mm x 25 mm transducer and readout unit.

Horizontal clearance of UTCM-0200 is and UTCM-0210 are 145mm, UTC-1170 and UTC-1175 are is 220mm. Adjustable beam height (without digital dial gauge and adapter set) is 365 mm for all type.

All information about shrinkage moulds, steel inserts and reference rods can be seen on pages of UTCM-0029E, UTCM-0033A, UTA-0850, UTC-1153, UTC-1155 and UTC-1161.

The Length Comparators are supplied complete with 3 pcs. adapter sets (compatible with referance rods and inserts).

Reference rods and moulds should be ordered separately according to test to be performed.

Ürünler

Ürünler

Product Code Description Number Process
UTCM-0200 Length Comparator with Digital Dial Gauge
UTCM-0210 Length Comparator with Heidenhain Length Measuring Sensor and Digital Readout Unit
UTC-1170 Large Type Length Comparator with Digital Dial Gauge
UTC-1175 Large Type Length Comparator with Heidenhain Length Measuring Sensor and Digital Readout Unit

Teknik Özellikler

Teknik Özellikler

Product Code

Dimensions

Weight  (approx.)

 UTCM-0200

 180x180x450 mm

6 kg

 UTCM-0210

250x250x640 mm

8 kg

 UTC-1170

250x250x650 mm

8 kg

 UTC-1175

250x350x650 mm

9 kg


Standartlar

Standartlar

EN 1367–4, 12617–4, 12808-4; ASTM C151, C157, C227, C311, C341, C342, C441,C452, C490, C531, C596, C806, C878; BS 1881:5, 6073

Aksesuarlar

Aksesuarlar

Product Code Description Number Process
